LP-CC-5-6/10
lmages are for reference only.LP-CC-5-6/10
FUSE CRTRDGE 5.6A 600VAC/150VDC
Datasheet5AG, 10mm x 38mm (Midget)
39,536 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
5.6A 600 VAC 150 VDC Fuse Cartridge Requires Holder
LP-CC-5-6/10
| Category | Circuit Protection - Electrical-Specialty Fuses - |
| Manufacturer | Eaton - Bussmann Electrical Division |
| Series | Low-Peak™ LP-CC |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Mounting Type | Requires Holder |
| Fuse Type | Cartridge |
| Current Rating (Amps) | 5.6A |
| Voltage Rating - AC | 600 VAC |
| Response Time | Slow Blow |
| Applications | Motor Protection |
| Features | - |
| Class | CC |
| Approval Agency | CE, CSA, UR |
| Operating Temperature | - |
| Breaking Capacity @ Rated Voltage | 200kA AC, 20kA DC |
| Package / Case | 5AG, 10mm x 38mm (Midget) |
| Size / Dimension | 0.394" Dia x 1.496" L (10.00mm x 38.00mm) |
| Base Product Number | - |
| Voltage Rating - DC | 150 VDC |
| Grade | - |
| Qualification | - |
| Melting I²t | - |
| DC Cold Resistance | - |
| Product Attribute |  |
|
|
|

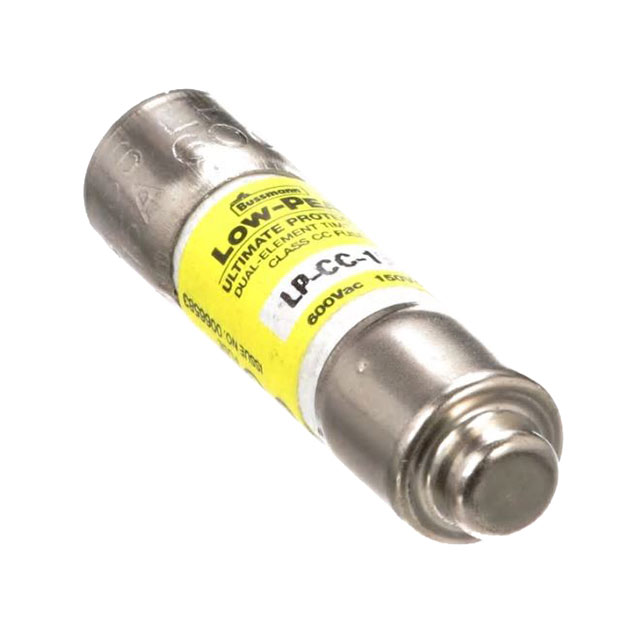

| Part Number | LP-CC-1 | LP-CC-1-1/2 | LP-CC-1-1/4 | LP-CC-1-1/8 |
| Manufacturer | Eaton - Bussmann Electrical Division | Eaton - Bussmann Electrical Division | Eaton - Bussmann Electrical Division | Eaton - Bussmann Electrical Division |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | FUSE CARTRIDGE 1A 600VAC/300VDC | FUSE CRTRDGE 1.5A 600VAC/300VDC | FUSE CRTRDGE 1.25A 600VAC/300VDC | FUSE CRTRDG 1.125A 600VAC/300VDC |
| Series | Low-Peak™ LP-CC | Low-Peak™ LP-CC | Low-Peak™ LP-CC | Low-Peak™ LP-CC |
| Packaging | Bulk | Bulk | Bulk | Bulk |
