LP2988ILD-3.0
lmages are for reference only.LP2988ILD-3.0
IC REG LINEAR 3V 200MA 8WSON
Datasheet8-WDFN Exposed Pad
17,467 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 1 Output 200mA 8-WSON (4x4)
LP2988ILD-3.0
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | National Semiconductor |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 16V |
| Voltage - Output (Min/Fixed) | 3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.35V @ 200mA |
| Current - Output | 200mA |
| Current - Quiescent (Iq) | 120 µA |
| PSRR | 65dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-WDFN Exposed Pad |
| Supplier Device Package | 8-WSON (4x4) |
| Base Product Number | - |
| Current - Supply (Max) | 3.7 mA |
| Product Attribute |  |
 |
|
 |

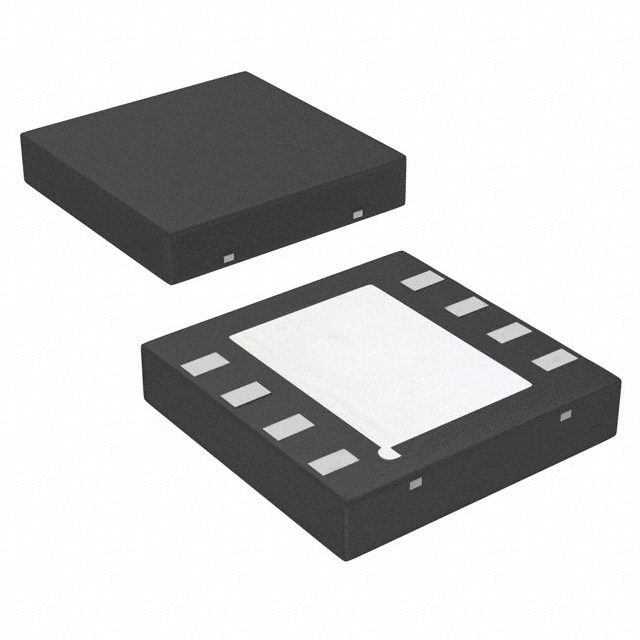

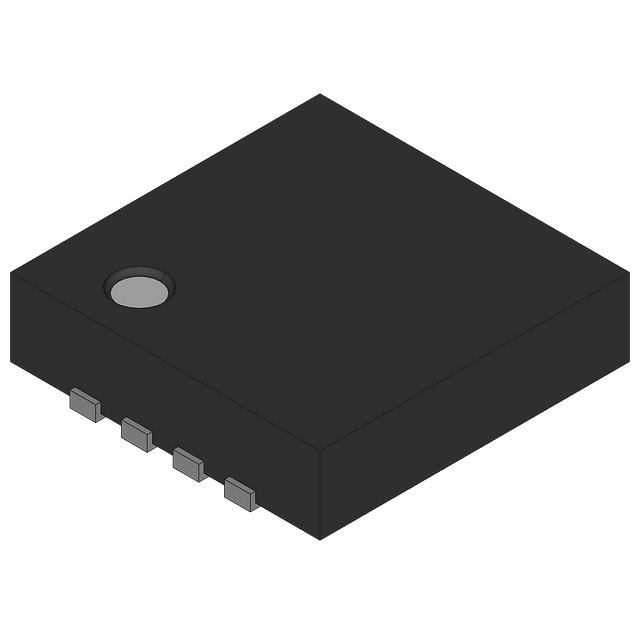

| Part Number | LP2988ILD-3.8 | LP2988ILD-3.8/NOPB | LP2988ILD-3.8/NOPB | LP2988ILDX-3.8/NOPB |
| Manufacturer | National Semiconductor | Texas Instruments | National Semiconductor | Texas Instruments |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | IC REG LINEAR 3.8V 200MA 8WSON | IC REG LINEAR 3.8V 200MA 8WSON | IC REG LINEAR 3.8V 200MA 8WSON | IC REG LINEAR 3.8V 200MA 8WSON |
| Series | National Semiconductor | Texas Instruments | National Semiconductor | Texas Instruments |
| Packaging | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Tape & Reel (TR) |
