Product CatalogPart Number
LPC1756FBD80,551
Manufacturer
NXP USA Inc.Description
IC MCU 32BIT 256KB FLASH 80LQFP
Datasheet
DatasheetPackage
80-LQFP
In Stock
32,522 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
LPC1756FBD80,551
LPC1756FBD80,551
lmages are for reference only.Payment Methods
Delivery Services
ARM® Cortex®-M3 LPC17xx Microcontroller IC 32-Bit Single-Core 100MHz 256KB (256K x 8) FLASH 80-LQFP (12x12)
Quick Inquiry

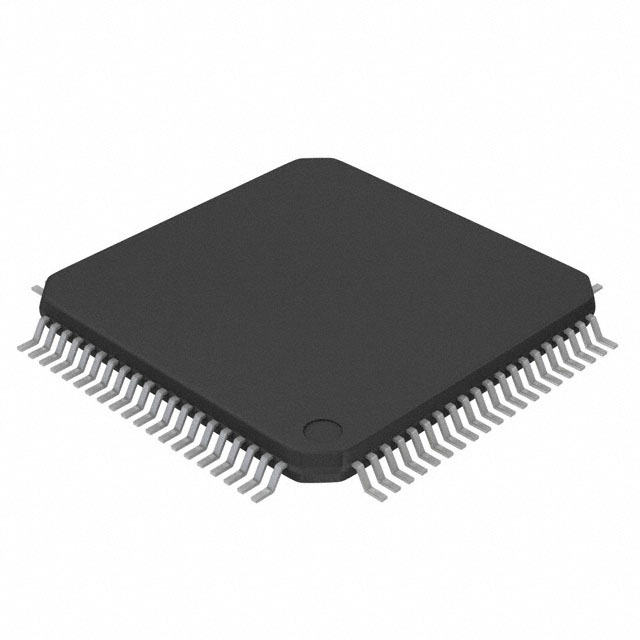

LPC1756FBD80,551
Specifications
| Category | Integrated Circuits (ICs) - Embedded - Microcontrollers |
| Manufacturer | NXP USA Inc. |
| Series | LPC17xx |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Core Processor | ARM® Cortex®-M3 |
| Core Size | 32-Bit Single-Core |
| Speed | 100MHz |
| Connectivity | CANbus, I2C, IrDA, Microwire, SPI, SSI, SSP, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, Motor Control PWM, POR, PWM, WDT |
| Number of I/O | 52 |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 32K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.4V ~ 3.6V |
| Data Converters | A/D 6x12b; D/A 1x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 80-LQFP (12x12) |
| Package / Case | 80-LQFP |
| Base Product Number | LPC1756 |
| Grade | - |
| Qualification | - |
