LQG15WZ1N5S02D
lmages are for reference only.LQG15WZ1N5S02D
FIXED IND 1.5NH 1A 0.04OHM SMD
Datasheet0402 (1005 Metric)
22,037 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1.5 nH Unshielded Multilayer Inductor 1 A 40mOhm Max 0402 (1005 Metric)
LQG15WZ1N5S02D
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Murata Electronics |
| Series | LQG15 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Multilayer |
| Material - Core | Air |
| Inductance | 1.5 nH |
| Tolerance | ±0.3nH |
| Current Rating (Amps) | 1 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 40mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 11GHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | 0402 (1005 Metric) |
| Size / Dimension | 0.039" L x 0.024" W (1.00mm x 0.60mm) |
| Height - Seated (Max) | 0.020" (0.51mm) |
| Base Product Number | LQG15WZ |
| Product Attribute |  |
 |
 |
 |

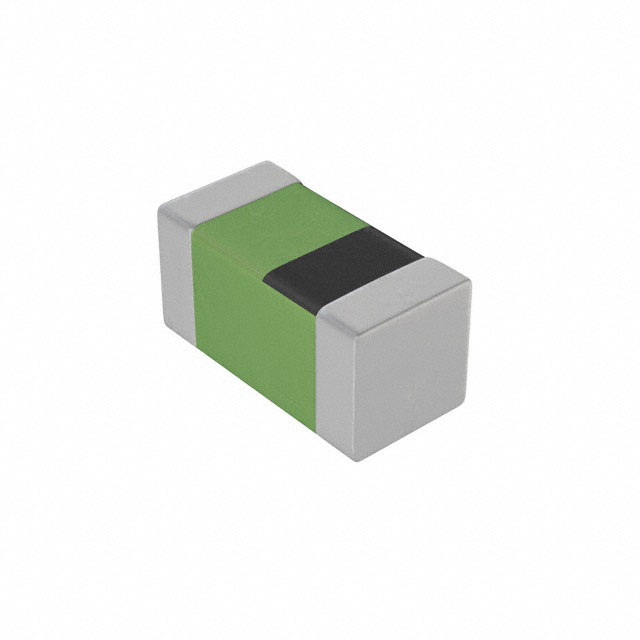

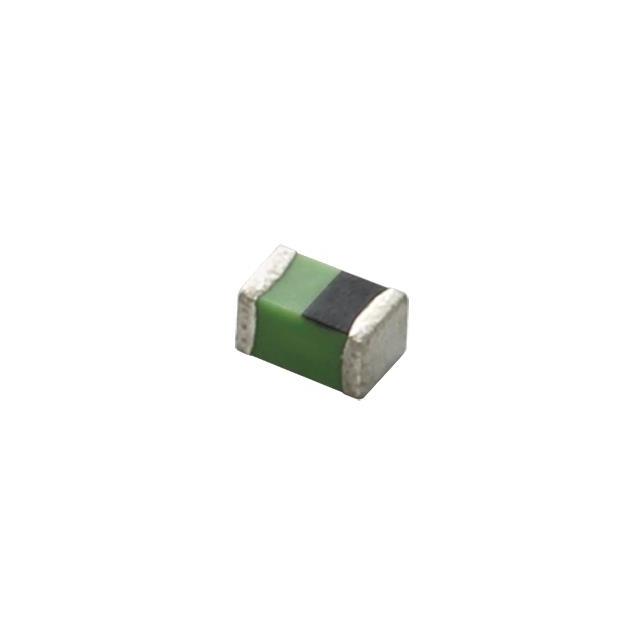

| Part Number | LQG15WZ10NG02D | LQG15WZ10NH02D | LQG15WZ10NJ02D | LQG15WZ11NG02D |
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 10NH 500MA 0.19OHM SMD | FIXED IND 10NH 500MA 0.19OHM SMD | FIXED IND 10NH 500MA 0.19OHM SMD | FIXED IND 11NH 450MA 0.22OHM SMD |
| Series | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
