LQH55DN100M03L

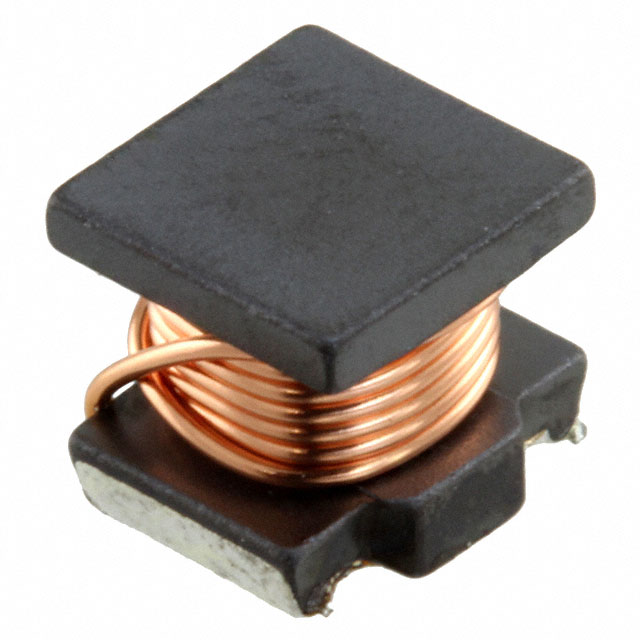

lmages are for reference only.LQH55DN100M03L
FIXED IND 10UH 1.7A 130.2MOHM SM
Datasheet2220 (5750 Metric)
69,019 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
10 µH Unshielded Drum Core, Wirewound Inductor 1.7 A 130.2mOhm Max 2220 (5750 Metric)
LQH55DN100M03L
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Murata Electronics |
| Series | LQH55 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.7 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 130.2mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 20MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 80°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 2220 (5750 Metric) |
| Supplier Device Package | 2220 (5650 Metric) |
| Size / Dimension | 0.224" L x 0.197" W (5.70mm x 5.00mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
| Base Product Number | LQH55DN |
| Product Attribute |  |
 |
 |
 |
| Part Number | LQH55DN101M03L | LQH55DN102M03L | LQH55DN103M03L | LQH55DN150M03L |
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 100UH 560MA 1.2OHM SMD | FIXED IND 1MH 150MA 14.42OHM SMD | FIXED IND 10MH 50MA 140 OHM SMD | FIXED IND 15UH 1.4A 210 MOHM SMD |
| Series | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
