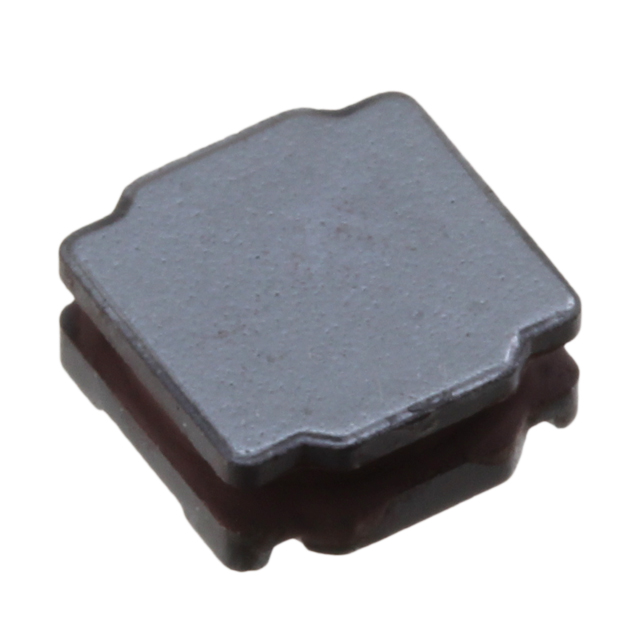

LQH5BPH100MT0L
lmages are for reference only.LQH5BPH100MT0L
FIXED IND 10UH 1.6A 127.2MOHM SM
DatasheetNonstandard
89,177 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
10 µH Shielded Drum Core, Wirewound Inductor 1.6 A 127.2mOhm Max Nonstandard
LQH5BPH100MT0L
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Murata Electronics |
| Series | LQH5 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.6 A |
| Current - Saturation (Isat) | 2A |
| Shielding | Shielded |
| DC Resistance (DCR) | 127.2mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 25MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
| Height - Seated (Max) | 0.087" (2.20mm) |
| Base Product Number | LQH5BPH |
| Product Attribute |  |
 |
 |
 |

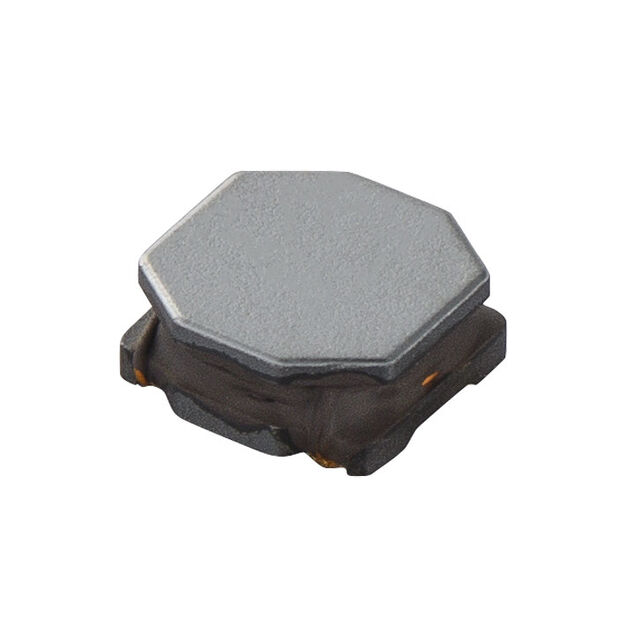

| Part Number | LQH5BPH101MT0L | LQH5BPH150MT0L | LQH5BPH1R2NT0L | LQH5BPH1R5NT0L |
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 100UH 0.55A 1.02 MOHM | FIXED IND 15UH 1.2A 224.4MOHM SM | FIXED IND 1.2UH 3.1A 22.8MOHM SM | FIXED IND 1.5UH 3A 28.8 MOHM SMD |
| Series | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
