LQP02HQ3N4B02L
lmages are for reference only.LQP02HQ3N4B02L
FIXED IND 3.4NH 400MA 300MOHM SM
Datasheet01005 (0402 Metric)
90,084 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
3.4 nH Unshielded Thick Film Inductor 400 mA 300mOhm Max 01005 (0402 Metric)
LQP02HQ3N4B02L
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Murata Electronics |
| Series | LQP02 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Thick Film |
| Material - Core | - |
| Inductance | 3.4 nH |
| Tolerance | ±0.1nH |
| Current Rating (Amps) | 400 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 300mOhm Max |
| Q @ Freq | 14 @ 500MHz |
| Frequency - Self Resonant | 8.2GHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 500 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 01005 (0402 Metric) |
| Supplier Device Package | 01005 (0402 Metric) |
| Size / Dimension | 0.016" L x 0.008" W (0.40mm x 0.20mm) |
| Height - Seated (Max) | 0.013" (0.32mm) |
| Base Product Number | LQP02HQ |
| Product Attribute |  |
 |
 |
 |

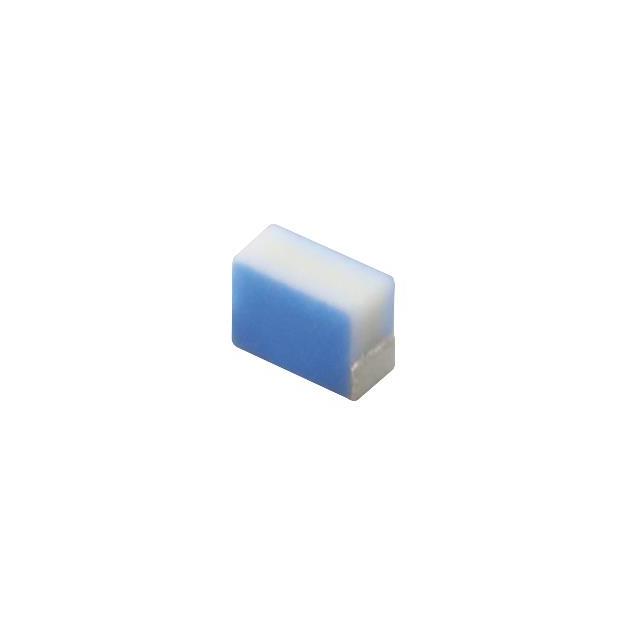

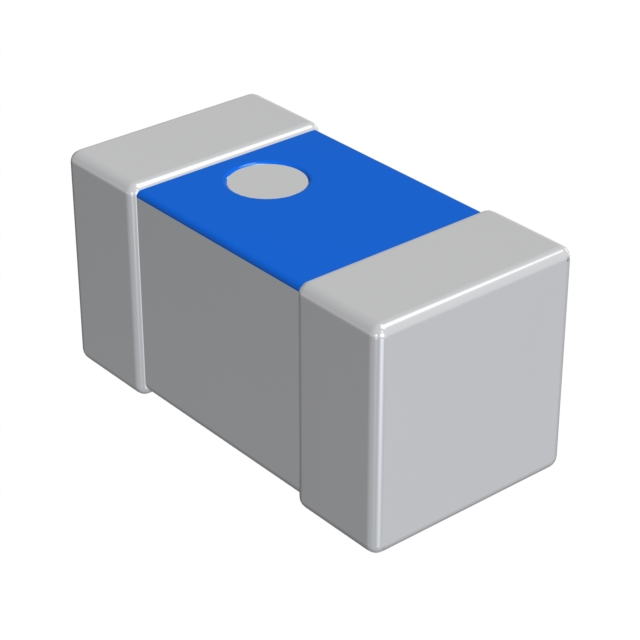

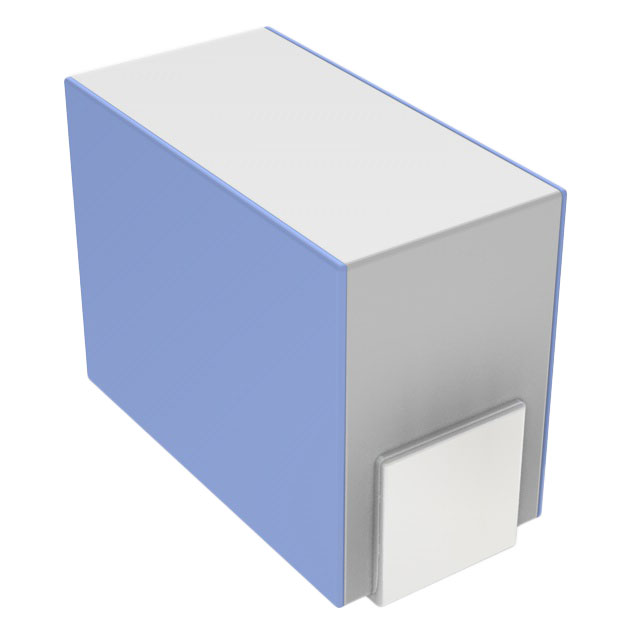

| Part Number | LQP02HQ3N4B02E | LQP02HQ30NH02E | LQP02HQ30NH02L | LQP02HQ30NJ02E |
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 3.4NH 400MA 300MOHM SM | FIXED IND 30NH 120MA SMD | EMC | EMC |
| Series | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
