LQP02HV3N4B02L

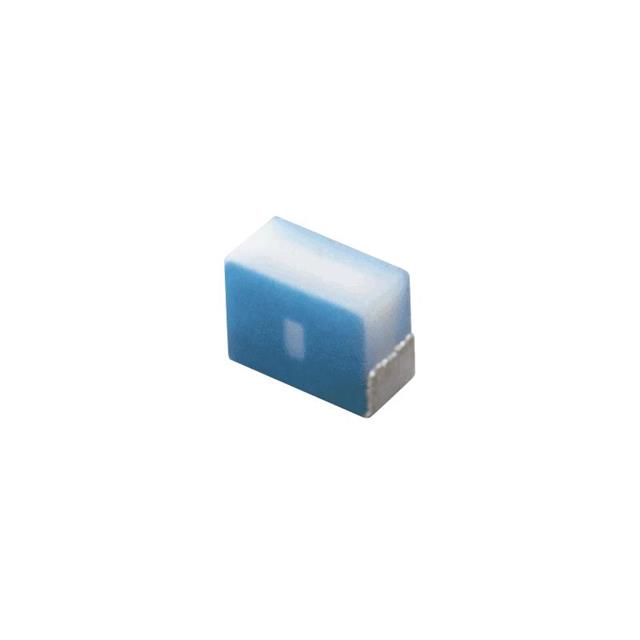

lmages are for reference only.LQP02HV3N4B02L
FIXED IND 3.4NH 360MA NONAUTO
Datasheet01005 (0402 Metric)
67,686 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
3.4 nH Unshielded Thin Film Inductor 360 mA 240mOhm Max 01005 (0402 Metric)
LQP02HV3N4B02L
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Murata Electronics |
| Series | LQP02 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Thin Film |
| Material - Core | - |
| Inductance | 3.4 nH |
| Tolerance | ±0.1nH |
| Current Rating (Amps) | 360 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 240mOhm Max |
| Q @ Freq | 16 @ 500MHz |
| Frequency - Self Resonant | 9.4GHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 500 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 01005 (0402 Metric) |
| Supplier Device Package | 1005 |
| Size / Dimension | 0.016" L x 0.008" W (0.40mm x 0.20mm) |
| Height - Seated (Max) | 0.013" (0.32mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | LQP02HV3N0B02L | LQP02HV3N0C02L | LQP02HV3N1B02L | LQP02HV3N1C02L |
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 3NH 360MA NONAUTO | FIXED IND 3NH 360MA NONAUTO | FIXED IND 3.1NH 360MA NONAUTO | FIXED IND 3.1NH 360MA NONAUTO |
| Series | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
