LQP03TN91NH02D
lmages are for reference only.LQP03TN91NH02D
FIXED IND 91NH 80MA 10 OHM SMD
Datasheet0201 (0603 Metric)
61,569 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
91 nH Unshielded Thick Film Inductor 80 mA 10Ohm Max 0201 (0603 Metric)
LQP03TN91NH02D
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Murata Electronics |
| Series | LQP03 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Thick Film |
| Material - Core | Non-Magnetic |
| Inductance | 91 nH |
| Tolerance | ±3% |
| Current Rating (Amps) | 80 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 10Ohm Max |
| Q @ Freq | 8 @ 300MHz |
| Frequency - Self Resonant | 900MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 300 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0201 (0603 Metric) |
| Supplier Device Package | 0201 (0603 Metric) |
| Size / Dimension | 0.024" L x 0.012" W (0.60mm x 0.30mm) |
| Height - Seated (Max) | 0.013" (0.33mm) |
| Base Product Number | LQP03TN |
| Product Attribute |  |
 |
 |
 |

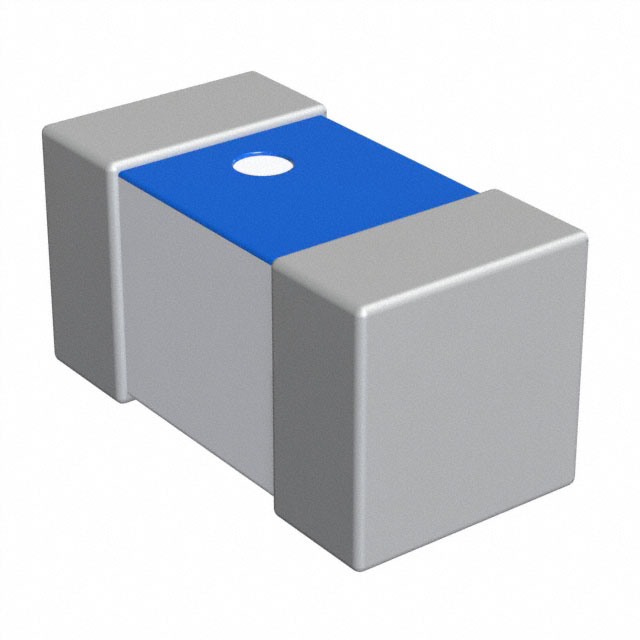

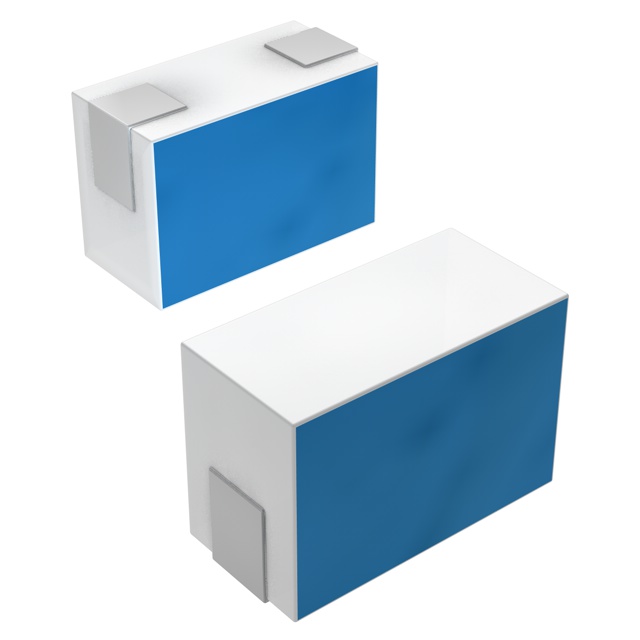

| Part Number | LQP03TN91NHZ2D | LQP03TN91NJ02D | LQP03TN91NJZ2D | LQP03TN9N1H02D |
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND | FIXED IND 91NH 80MA 10 OHM SMD | FIXED IND | FIXED IND 9.1NH 250MA 700MOHM SM |
| Series | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
