LQW15AN8N4G8ZD

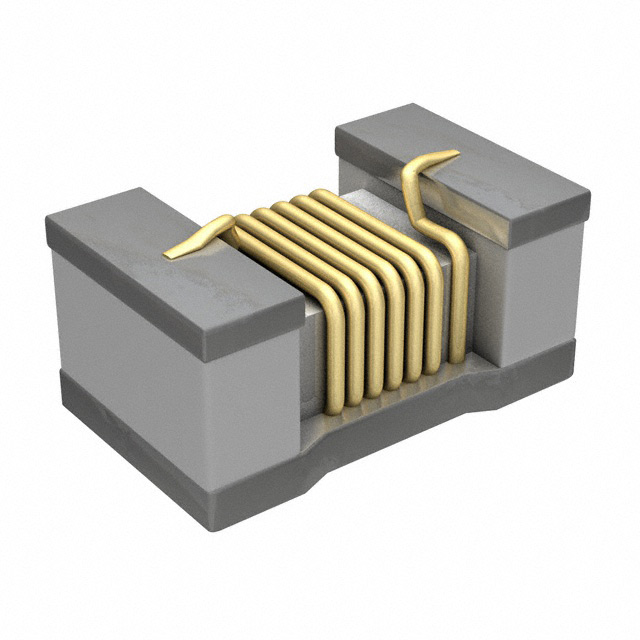

lmages are for reference only.LQW15AN8N4G8ZD
FIXED IND 8.4NH 1.5A 0.069OHM SM
Datasheet0402 (1005 Metric)
80,834 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
8.4 nH Unshielded Drum Core, Wirewound Inductor 1.5 A 69mOhm Max 0402 (1005 Metric)
LQW15AN8N4G8ZD
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Murata Electronics |
| Series | LQW15 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Non-Magnetic |
| Inductance | 8.4 nH |
| Tolerance | ±2% |
| Current Rating (Amps) | 1.5 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 69mOhm Max |
| Q @ Freq | 32 @ 250MHz |
| Frequency - Self Resonant | 6.5GHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | - |
| Size / Dimension | 0.039" L x 0.024" W (1.00mm x 0.60mm) |
| Height - Seated (Max) | 0.024" (0.60mm) |
| Base Product Number | LQW15AN |
| Product Attribute |  |
 |
 |
 |
| Part Number | LQW15AN8N4G80D | LQW15AN82NG00D | LQW15AN82NG0ZD | LQW15AN82NJ00D |
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 8.4NH 1.5A 0.069OHM SM | FIXED IND 82NH 130MA 2.24OHM SMD | FIXED IND 82NH 130MA 2.24OHM SMD | FIXED IND 82NH 130MA 2.24OHM SMD |
| Series | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
