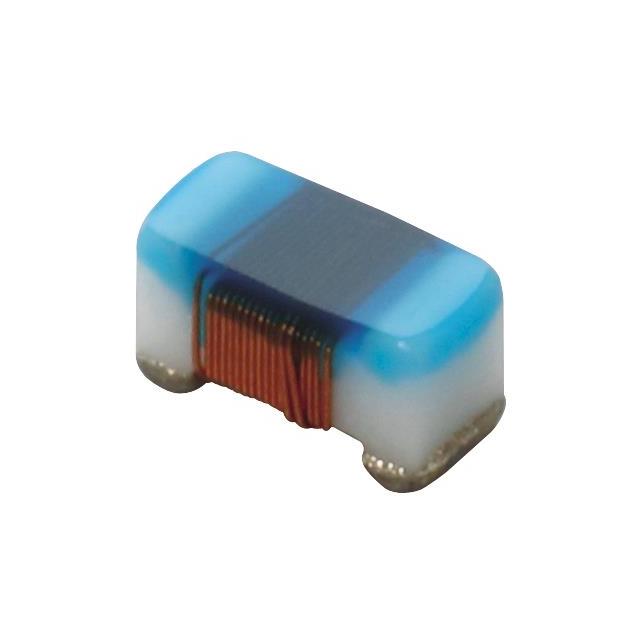

8.6 nH Unshielded Drum Core, Wirewound Inductor 540 mA 140mOhm Max 0402 (1005 Metric)
LQW15AN8N6H0ZD
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Murata Electronics |
| Series | LQW15 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Non-Magnetic |
| Inductance | 8.6 nH |
| Tolerance | ±3% |
| Current Rating (Amps) | 540 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 140mOhm Max |
| Q @ Freq | 25 @ 250MHz |
| Frequency - Self Resonant | 5.5GHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | - |
| Size / Dimension | 0.039" L x 0.024" W (1.00mm x 0.60mm) |
| Height - Seated (Max) | 0.024" (0.60mm) |
| Base Product Number | LQW15AN |
| Product Attribute |  |
 |
 |
 |
| Part Number | LQW15AN8N6H00D | LQW15AN82NG00D | LQW15AN82NG0ZD | LQW15AN82NJ00D |
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 8.6NH 540MA 0.14OHM SM | FIXED IND 82NH 130MA 2.24OHM SMD | FIXED IND 82NH 130MA 2.24OHM SMD | FIXED IND 82NH 130MA 2.24OHM SMD |
| Series | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
