LQW15CAR80K00D

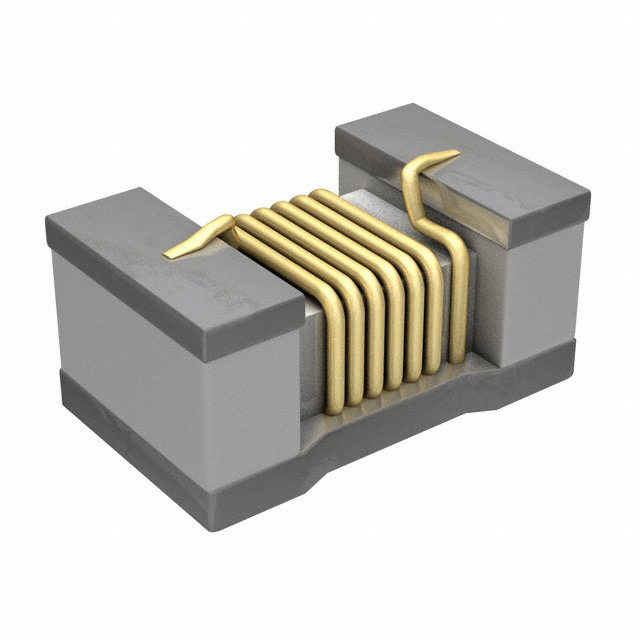

lmages are for reference only.LQW15CAR80K00D
FIXED IND 800NH 190MA 2.1OHM SMD
Datasheet0402 (1005 Metric)
39,744 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
800 nH Unshielded Drum Core, Wirewound Inductor 190 mA 2.1Ohm Max 0402 (1005 Metric)
LQW15CAR80K00D
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Murata Electronics |
| Series | LQW15 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 800 nH |
| Tolerance | ±10% |
| Current Rating (Amps) | 190 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 2.1Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 770MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 10 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | - |
| Size / Dimension | 0.040" L x 0.022" W (1.02mm x 0.55mm) |
| Height - Seated (Max) | 0.026" (0.66mm) |
| Base Product Number | LQW15CA |
| Product Attribute |  |
 |
 |
 |
| Part Number | LQW15CAR11J00D | LQW15CAR11K00D | LQW15CAR14J00D | LQW15CAR14K00D |
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 110NH 900MA 0.13OHM SM | FIXED IND 110NH 900MA 0.13OHM SM | FIXED IND 140NH 680MA 0.18OHM SM | FIXED IND 140NH 680MA 0.18OHM SM |
| Series | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
