LRC0603CS2N2GV001T

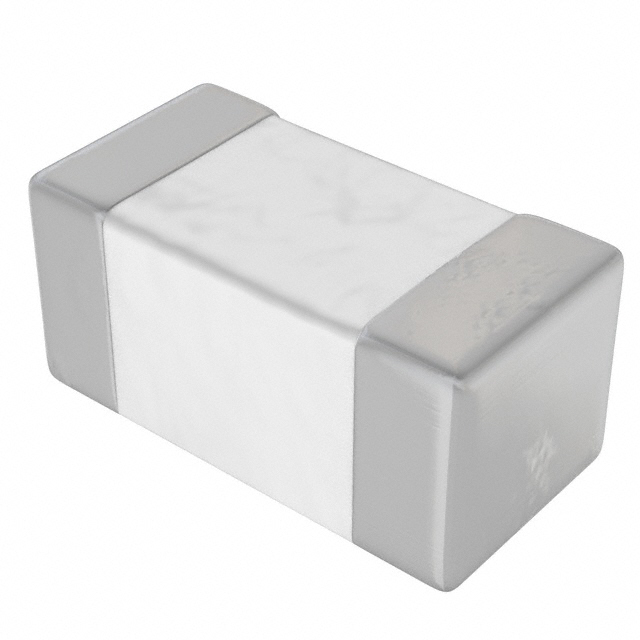

lmages are for reference only.LRC0603CS2N2GV001T
FIXED IND 2.2NH 300MA 150MOHM SM
Datasheet0603 (1608 Metric)
81,737 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2.2 nH Unshielded Multilayer Inductor 300 mA 150mOhm Max 0603 (1608 Metric)
LRC0603CS2N2GV001T
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Johanson Technology Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Multilayer |
| Material - Core | Ceramic |
| Inductance | 2.2 nH |
| Tolerance | ±0.3nH |
| Current Rating (Amps) | 300 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 150mOhm Max |
| Q @ Freq | 8 @ 100MHz |
| Frequency - Self Resonant | 12GHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 100°C |
| Inductance Frequency - Test | 100 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 (1608 Metric) |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | 0.037" (0.95mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | LRC0603CJ10NGV001T | LRC0603CJ12NGV001T | LRC0603CJ15NGV001T | LRC0603CJ18NGV001T |
| Manufacturer | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 10NH 300MA 450MOHM SMD | FIXED IND 12NH 300MA 500MOHM SMD | FIXED IND 15NH 300MA 550MOHM SMD | FIXED IND 18NH 300MA 600MOHM SMD |
| Series | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
