LRSE-18-100-A-00-10-A

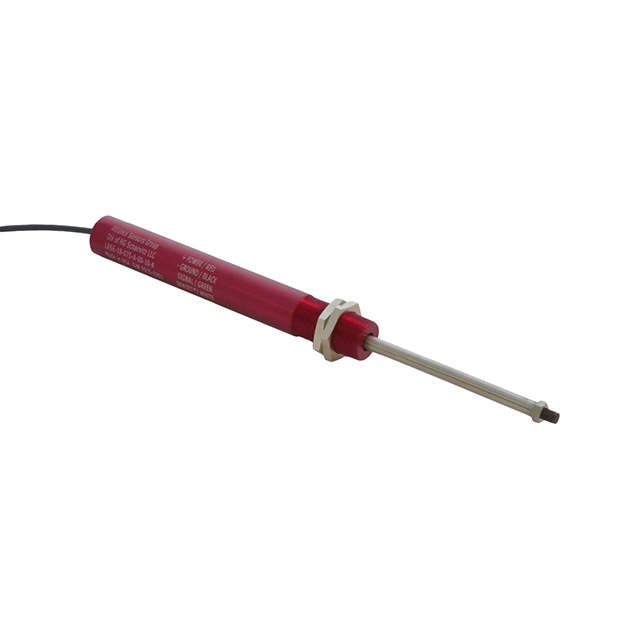

lmages are for reference only.LRSE-18-100-A-00-10-A
SENSOR LINEAR 101.6MM 1M CABLE
DatasheetCylinder
42,575 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
LVIT (Linear Variable Inductance Transducer) Sensor Linear Position Round Shaft Cable
LRSE-18-100-A-00-10-A
| Category | Sensors, Transducers - Position Sensors - Angle-Linear Position Measuring |
| Manufacturer | Alliance Sensors Group |
| Series | LRS-18 |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| For Measuring | Linear Position |
| Technology | LVIT (Linear Variable Inductance Transducer) |
| Rotation Angle - Electrical, Mechanical | - |
| Linear Range | 0 ~ 101.60mm (0 ~ 4.00") |
| Output | 0 V ~ 10 V |
| Output Signal | - |
| Actuator Type | Round Shaft |
| Linearity | ±0.15% |
| Resistance | - |
| Resistance Tolerance | - |
| Voltage - Supply | 0V ~ 10V |
| Mounting Type | Chassis Mount |
| Termination Style | Cable |
| Operating Temperature | -20°C ~ 85°C |
| Package / Case | Cylinder |
| Supplier Device Package | - |
| Grade | - |
| Qualification | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | LRSE-18-013-A-00-10-A | LRSE-18-050-A-00-10-A | LRSE-18-075-A-00-10-A | MLX90513GGO-CAA-100-SP |
| Manufacturer | Alliance Sensors Group | Alliance Sensors Group | Alliance Sensors Group | Melexis Technologies NV |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | SENSOR LINEAR 12.7MM 1M CABLE | SENSOR LINEAR 50.8MM 1M CABLE | SENSOR LINEAR 76.2MM 1M CABLE | INDUCTIVE POSITION SENSOR ASSP W |
| Series | LRS-18 | LRS-18 | LRS-18 | - |
| Packaging | Tube | Tube | Tube | Bulk |
