LRT GFTM-S7T7-1+V7AW-29-0-A-R33-ZO

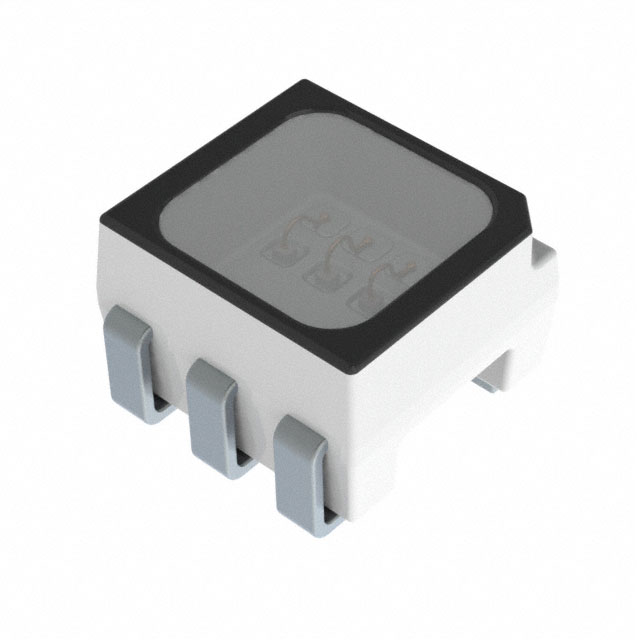

lmages are for reference only.LRT GFTM-S7T7-1+V7AW-29-0-A-R33-ZO
LED MULTILED SMD
Datasheet6-SMD, J-Lead
26,479 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Green, Red 528nm Green, 625nm Red LED Indication - Discrete 3.2V Green, 2.05V Red 6-SMD, J-Lead
LRT GFTM-S7T7-1+V7AW-29-0-A-R33-ZO
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | ams-OSRAM USA INC. |
| Series | MULTILED® Black Surface |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Color | Green, Red |
| Configuration | - |
| Lens Color | - |
| Lens Transparency | Diffused |
| Millicandela Rating | 1350mcd Green, 392mcd Red |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.80mm x 2.50mm |
| Voltage - Forward (Vf) (Typ) | 3.2V Green, 2.05V Red |
| Current - Test | 20mA Green, 10mA Red |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 528nm Green, 625nm Red |
| Wavelength - Peak | 523nm Green, 632nm Red |
| Features | - |
| Package / Case | 6-SMD, J-Lead |
| Supplier Device Package | 6-PLCC |
| Size / Dimension | 3.30mm L x 3.00mm W |
| Height (Max) | 2.00mm |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute | |
|
|
 |
| Part Number | LRT GFTM-S7T7-1+V7AW-29-0-A-R33-ZB | LRT GFTM-S7T7-1+V7AW-36-0-A-L-ZO | LRT GFTM-S9-1+V9-4-0-A-R33-Z-XX | LRT GFTM-ST7-1+VV9-29-0-A-R33-ZB |
| Manufacturer | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED GREEN/RED DIFFUSED 6PLCC SMD | LED MULTILED SMD | LED MULTILED SMD | LED GREEN/RED DIFFUSED 6PLCC SMD |
| Series | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
