LRTBGVSG-UJVE-24+ANAP-35+TFTI-OR-20-L-XX

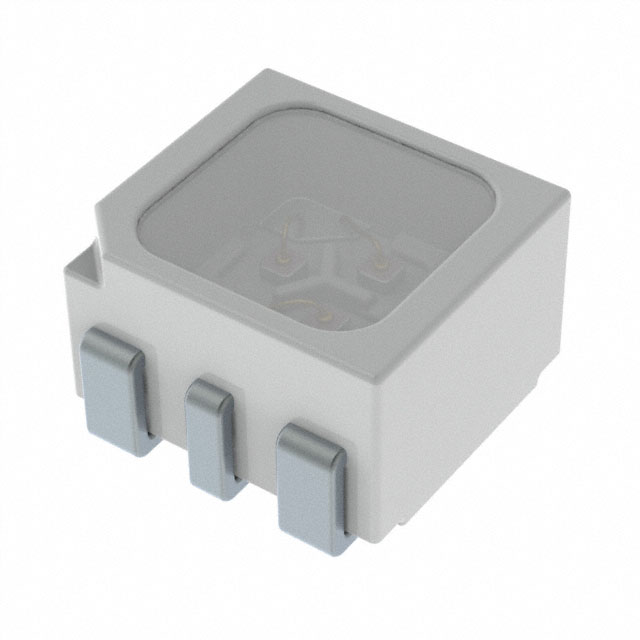

lmages are for reference only.LRTBGVSG-UJVE-24+ANAP-35+TFTI-OR-20-L-XX
LED RGB 6PLCC SMD
Datasheet6-SMD, J-Lead
10,073 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Red, Green, Blue (RGB) 626nm Red, 526nm Green, 470nm Blue LED Indication - Discrete 2.05V Red, 3.2V Green, 2.85V Blue 6-SMD, J-Lead
LRTBGVSG-UJVE-24+ANAP-35+TFTI-OR-20-L-XX
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | ams-OSRAM USA INC. |
| Series | MULTILED |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Color | Red, Green, Blue (RGB) |
| Configuration | Independent |
| Lens Color | - |
| Lens Transparency | - |
| Millicandela Rating | 834.5mcd Red, 1612.5mcd Green, 417mcd Blue |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.90mm x 2.60mm |
| Voltage - Forward (Vf) (Typ) | 2.05V Red, 3.2V Green, 2.85V Blue |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 626nm Red, 526nm Green, 470nm Blue |
| Wavelength - Peak | 632nm Red, 523nm Green, 455nm Blue |
| Features | - |
| Package / Case | 6-SMD, J-Lead |
| Supplier Device Package | 6-PLCC |
| Size / Dimension | 3.30mm L x 3.00mm W |
| Height (Max) | 2.00mm |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | LRTBGVSG-UJVE-24+ANAP-35+TFTI-OR-L-I-XX | LRTBGVSG-UJVD-23+ANAO-35+THUC-O1Q2-SNSI | LRTBGVSG-UJVD-23+ANAO-35+THUC-OQ-20-LZH | LRTBGVSG-UJVD-23+ANAP-35+TFTH-OP-20-S-DN |
| Manufacturer | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED RGB 6PLCC SMD | LED 6PLCC SMD | LED 6PLCC SMD | LED RGB 6PLCC SMD |
| Series | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
