LRTBGVTG-U9V5-1+A5A7-68+TT7-67-20-L-ZO
lmages are for reference only.LRTBGVTG-U9V5-1+A5A7-68+TT7-67-20-L-ZO
LED RGB DIFFUSED 6PLCC SMD
Datasheet6-SMD, J-Lead
77,040 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Red, Green, Blue (RGB) 625nm Red, 528nm Green, 470nm Blue LED Indication - Discrete 2.05V Red, 3.2V Blue, 3.2V Green 6-SMD, J-Lead
LRTBGVTG-U9V5-1+A5A7-68+TT7-67-20-L-ZO
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | ams-OSRAM USA INC. |
| Series | MULTILED® |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Color | Red, Green, Blue (RGB) |
| Configuration | Independent |
| Lens Color | - |
| Lens Transparency | Diffused |
| Millicandela Rating | 940mcd Red, 1745mcd Green, 420mcd Blue |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.80mm x 2.50mm |
| Voltage - Forward (Vf) (Typ) | 2.05V Red, 3.2V Blue, 3.2V Green |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 625nm Red, 528nm Green, 470nm Blue |
| Wavelength - Peak | 632nm Red, 523nm Green, 465nm Blue |
| Features | - |
| Package / Case | 6-SMD, J-Lead |
| Supplier Device Package | 6-PLCC |
| Size / Dimension | 3.30mm L x 3.00mm W |
| Height (Max) | 2.00mm |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

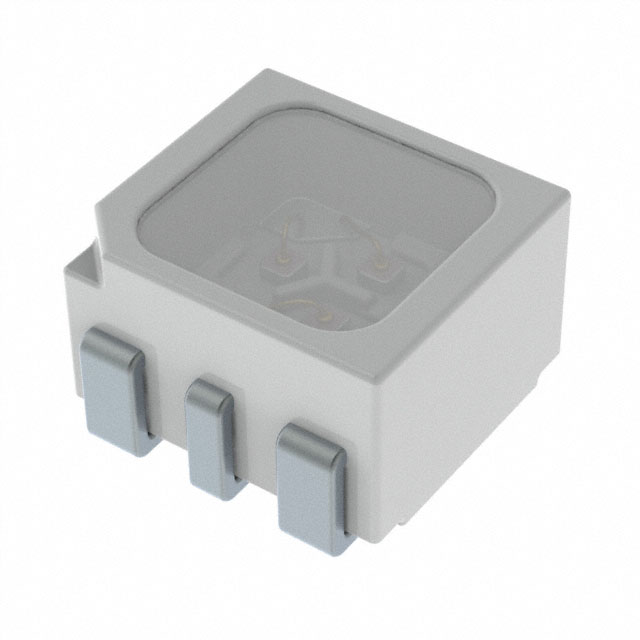

| Part Number | LRTBGVTG-U9V5-1+A5A7-45+S9T-67-20-R33-C | LRTBGVTG-U9V5-1+A5A7-57+S9T5-57-20-R33-C | LRTBGVTG-U9V5-1+A5A7-57+TT7-67-20-L-ZO | LRTBGVTG-U9V5-1+A5A7-57+TT7-67-20-LO-XX |
| Manufacturer | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED RGB DIFFUSED 6PLCC SMD | LED RGB DIFFUSED 6PLCC SMD | LED RGB DIFFUSED 6PLCC SMD | LED RGB DIFFUSED 6PLCC SMD |
| Series | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
