LSQNA201212T220M

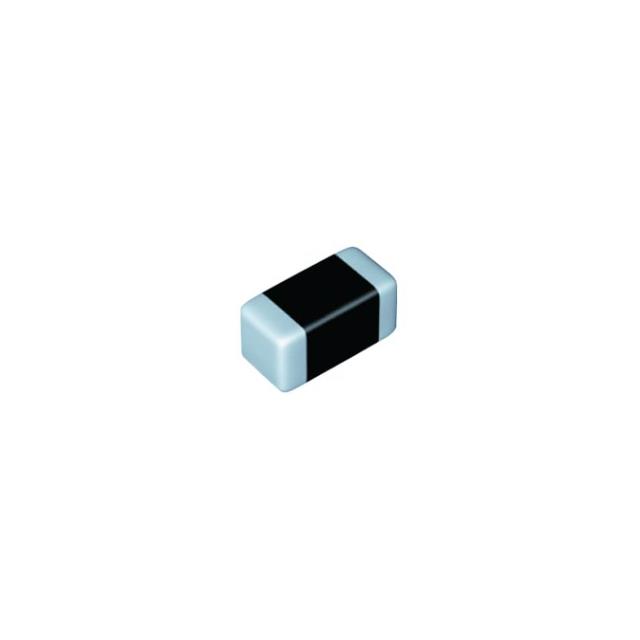

lmages are for reference only.LSQNA201212T220M
FIXED IND 22UH 280MA 1.7 OHM SMD
Datasheet0805 (2012 Metric)
73,327 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
22 µH Unshielded Wirewound Inductor 135 mA 2.21Ohm Max 0805 (2012 Metric)
LSQNA201212T220M
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Taiyo Yuden |
| Series | LSQN |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 22 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 135 mA |
| Current - Saturation (Isat) | 135mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 2.21Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 16MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 2.52 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.057" (1.45mm) |
| Base Product Number | - |
| Product Attribute |  |
|
 |
 |
| Part Number | LSQNA201212T220K | LSQNA201212T220M | LSQNA201212T2R2M | LSQNA201212T100K |
| Manufacturer | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 22UH 280MA 2.21OHM SMD | FIXED IND 22UH 280MA 1.7 OHM SMD | FIXED IND 2.2UH 770MA 299MOHM SM | FIXED IND 10UH 440MA 910MOHM SMD |
| Series | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
