Product CatalogPart Number
LSRNJ12555GL470MMY
Manufacturer
Taiyo YudenDescription
FIXED IND 47UH 2.7A 66.12MOHM SM
Datasheet
DatasheetPackage
Nonstandard
In Stock
29,206 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
LSRNJ12555GL470MMY
LSRNJ12555GL470MMY
lmages are for reference only.Payment Methods
Delivery Services
47 µH Shielded Wirewound Inductor 2.7 A 55.1mOhm Nonstandard
Quick Inquiry
LSRNJ12555GL470MMY
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Taiyo Yuden |
| Series | LSRN |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 47 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 2.7 A |
| Current - Saturation (Isat) | 2.23A |
| Shielding | Shielded |
| DC Resistance (DCR) | 55.1mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 9.3MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Height - Seated (Max) | 0.230" (5.85mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
|
| Part Number | LSRNJ12555GL100MMY | LSRNJ12555GL101MMY | LSRNJ12555GL102MMY | LSRNJ12555GL150MMY |
| Manufacturer | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 10UH 5.04A 21 MOHM SMD | FIXED IND 100UH 1.86A 140.4 MOHM | FIXED IND 1MH 590MA 1.344OHM SMD | FIXED IND 15UH 4.18A 27.96 MOHM |
| Series | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
Customers Also Interested in
Recommended Products
LSRNJ10145GL100MNY
Taiyo Yuden
LSRNJ10145GL100MNY
Taiyo Yuden
LSRNJ10145GL101MNY
Taiyo Yuden
LSRNJ10145GL102MNY
Taiyo Yuden
LSRNJ10145GL150MNY
Taiyo Yuden
LSRNJ10145GL151MNY
Taiyo Yuden

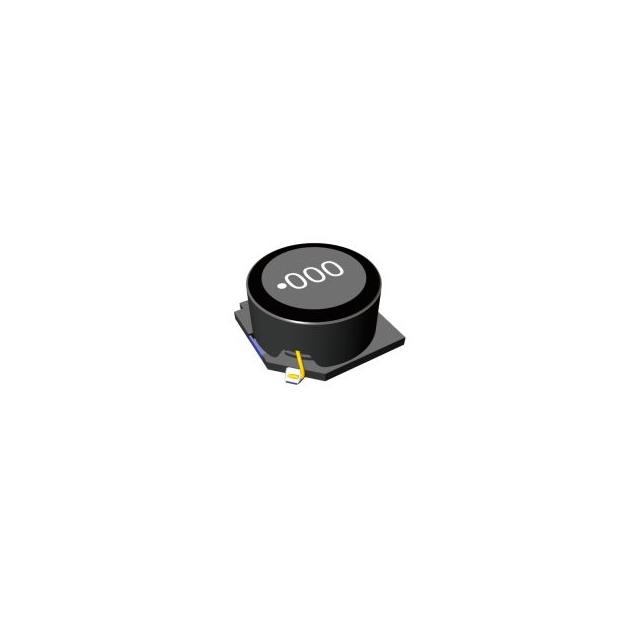

LSRNJ10145GL152MNY
