Product CatalogPart Number
LT1963AET-2.5#PBF
Manufacturer
Linear TechnologyDescription
LT1963A - 1.5A, LOW NOISE, FAST
Datasheet
DatasheetPackage
TO-220-5
In Stock
55,988 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
LT1963AET-2.5#PBF
LT1963AET-2.5#PBF
lmages are for reference only.Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 1 Output 1.5A TO-220-5
Quick Inquiry
LT1963AET-2.5#PBF
Specifications
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Linear Technology |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 20V |
| Voltage - Output (Min/Fixed) | 2.5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.55V @ 1.5A |
| Current - Output | 1.5A |
| Current - Quiescent (Iq) | 1.5 mA |
| PSRR | 63dB (120Hz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-5 |
| Supplier Device Package | TO-220-5 |
| Base Product Number | - |
| Current - Supply (Max) | 120 mA |
Parts with Similar Specifications
| Product Attribute |  |
 |
|
 |

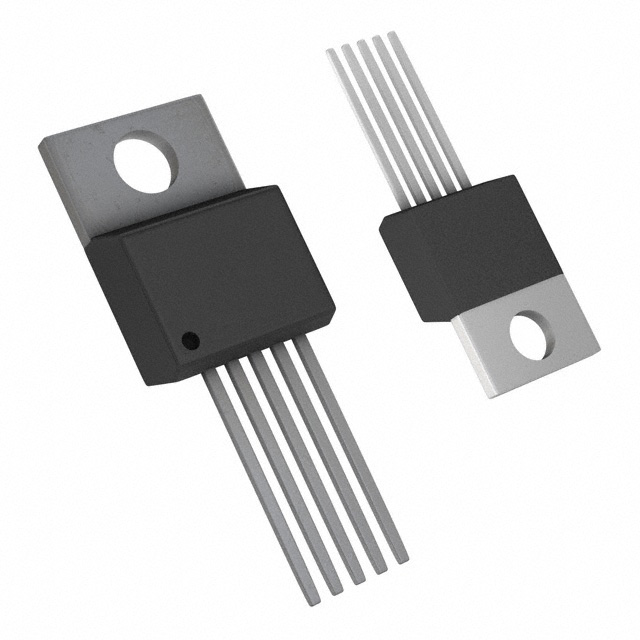

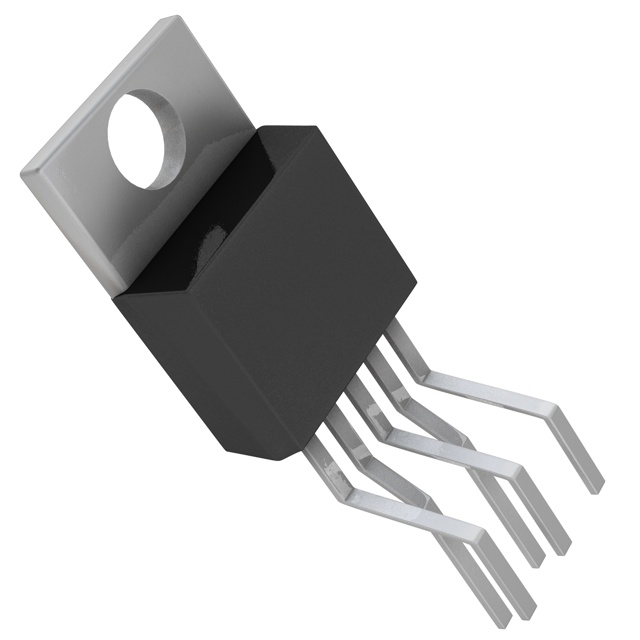

| Part Number | LT1963AET-2.5#06PBF | LT1963AET-2.5#30PBF | LT1963AET-2.5#PBF | LT1963AEFE#PBF |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG LIN 2.5V 1.5A TO220-5 | IC REG LIN 2.5V 1.5A TO220-5 | IC REG LINEAR 2.5V 1.5A TO220-5 | IC REG LIN POS ADJ 1.5A 16TSSOP |
| Series | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Packaging | Tube | Tube | Tube | Tube |
