LT1965EMS8E-1.5

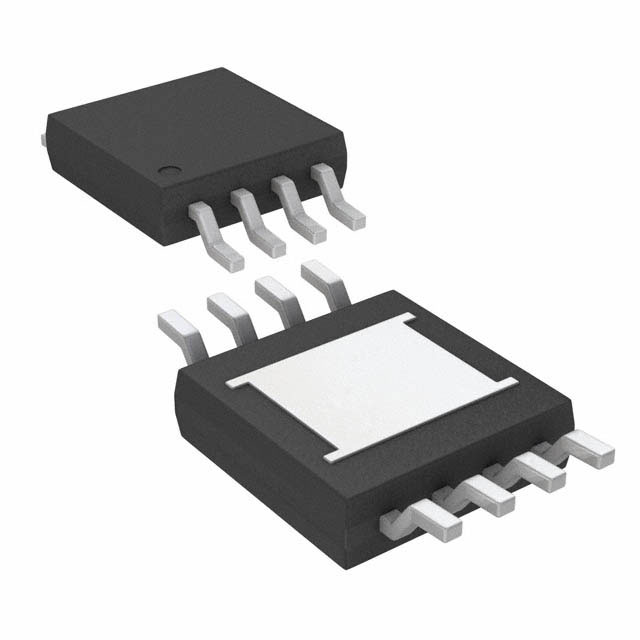

lmages are for reference only.LT1965EMS8E-1.5
LT1965 - 1.1A, LOW DROPOUT LINEA
Datasheet8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
43,798 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 1 Output 1.1A 8-MSOP-EP
LT1965EMS8E-1.5
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Linear Technology |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 20V |
| Voltage - Output (Min/Fixed) | 1.5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.49V @ 1.1A |
| Current - Output | 1.1A |
| Current - Quiescent (Iq) | 1.1 mA |
| PSRR | 75dB (120Hz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad |
| Supplier Device Package | 8-MSOP-EP |
| Base Product Number | - |
| Current - Supply (Max) | 40 mA |
| Product Attribute | |
 |
 |
 |
| Part Number | LT1965EMS8E-1.5 | LT1965EMS8E-1.5#PBF | LT1965EMS8E-1.5#TRPBF | LT1965EMS8E-1.8#PBF |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | IC REG LINEAR 1.5V 1.1A 8MSOP | IC REG LINEAR 1.5V 1.1A 8MSOP | IC REG LINEAR 1.5V 1.1A 8MSOP | IC REG LINEAR 1.8V 1.1A 8MSOP |
| Series | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Packaging | Tube | Tube | Tape & Reel (TR) | Tube |
