LT3008EDC-1.2#TRMPBF

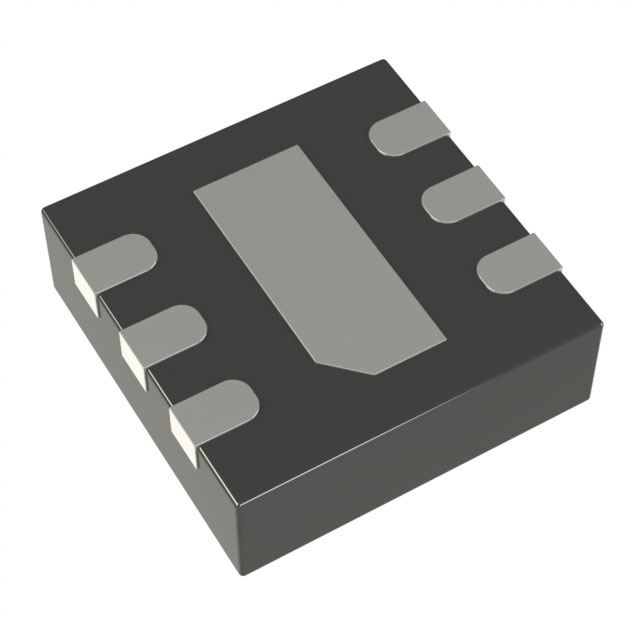

lmages are for reference only.LT3008EDC-1.2#TRMPBF
IC REG LINEAR 1.2V 20MA 6DFN
Datasheet6-WFDFN Exposed Pad
20,976 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 1 Output 20mA 6-DFN (2x2)
LT3008EDC-1.2#TRMPBF
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Analog Devices Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 45V |
| Voltage - Output (Min/Fixed) | 1.2V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.5V @ 20mA |
| Current - Output | 20mA |
| Current - Quiescent (Iq) | 6 µA |
| PSRR | 66dB (120Hz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-WFDFN Exposed Pad |
| Supplier Device Package | 6-DFN (2x2) |
| Base Product Number | LT3008 |
| Current - Supply (Max) | 1.2 mA |
| Product Attribute |  |
 |
 |
 |
| Part Number | LT3008EDC-1.2#TRPBF | LT3008EDC-1.5#TRMPBF | LT3008EDC-1.5#TRPBF | LT3008EDC-1.8#TRMPBF |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG LINEAR 1.2V 20MA 6DFN | IC REG LINEAR 1.5V 20MA 6DFN | IC REG LINEAR 1.5V 20MA 6DFN | IC REG LINEAR 1.8V 20MA 6DFN |
| Series | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
