LT3060ETS8#TRPBF

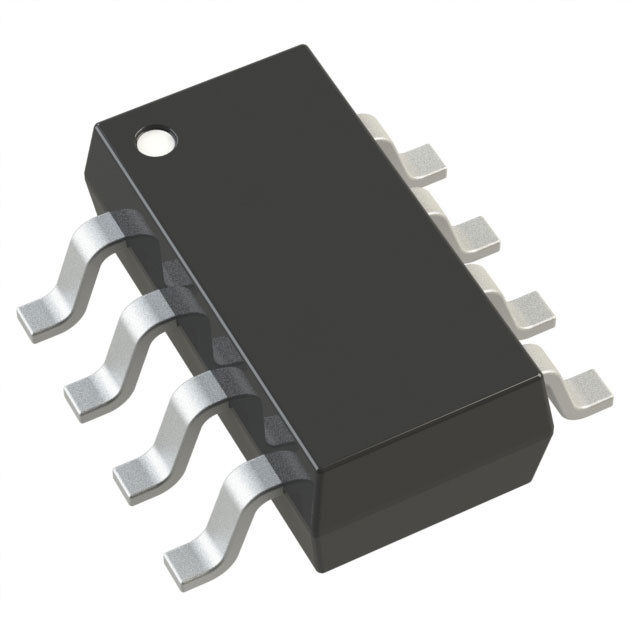

lmages are for reference only.LT3060ETS8#TRPBF
IC REG LIN POS ADJ 100MA TSOT23
DatasheetSOT-23-8 Thin, TSOT-23-8
66,690 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Adjustable 1 Output 100mA TSOT-23-8
LT3060ETS8#TRPBF
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Analog Devices Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 45V |
| Voltage - Output (Min/Fixed) | 0.6V |
| Voltage - Output (Max) | 44.5V |
| Voltage Dropout (Max) | 0.51V @ 100mA |
| Current - Output | 100mA |
| Current - Quiescent (Iq) | 80 µA |
| PSRR | 85dB (120Hz) |
| Control Features | Enable, Soft Start |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-8 Thin, TSOT-23-8 |
| Supplier Device Package | TSOT-23-8 |
| Base Product Number | LT3060 |
| Current - Supply (Max) | 4 mA |
| Product Attribute | |
|
|
|
| Part Number | LT3060ETS8#TRMPBF | LT3060ETS8-1.2#TRMPBF | LT3060ETS8-1.2#TRPBF | LT3060ETS8-1.5#TRMPBF |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG LIN POS ADJ 100MA TSOT23 | IC REG LIN 1.2V 100MA TSOT23-8 | IC REG LIN 1.2V 100MA TSOT23-8 | IC REG LIN 1.5V 100MA TSOT23-8 |
| Series | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
