LT3082EDD#PBF
lmages are for reference only.LT3082EDD#PBF
IC REG LINEAR POS ADJ 200MA 8DFN
Datasheet8-WFDFN Exposed Pad
53,533 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Adjustable 1 Output 200mA 8-DFN (3x3)
LT3082EDD#PBF
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Analog Devices Inc. |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 40V |
| Voltage - Output (Min/Fixed) | 0V |
| Voltage - Output (Max) | 38.5V |
| Voltage Dropout (Max) | 1.65V @ 200mA |
| Current - Output | 200mA |
| Current - Quiescent (Iq) | 500 µA |
| PSRR | 90dB ~ 20dB (120Hz ~ 1MHz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Short Circuit |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-WFDFN Exposed Pad |
| Supplier Device Package | 8-DFN (3x3) |
| Base Product Number | LT3082 |
| Current - Supply (Max) | - |
| Product Attribute |  |
 |
 |
 |

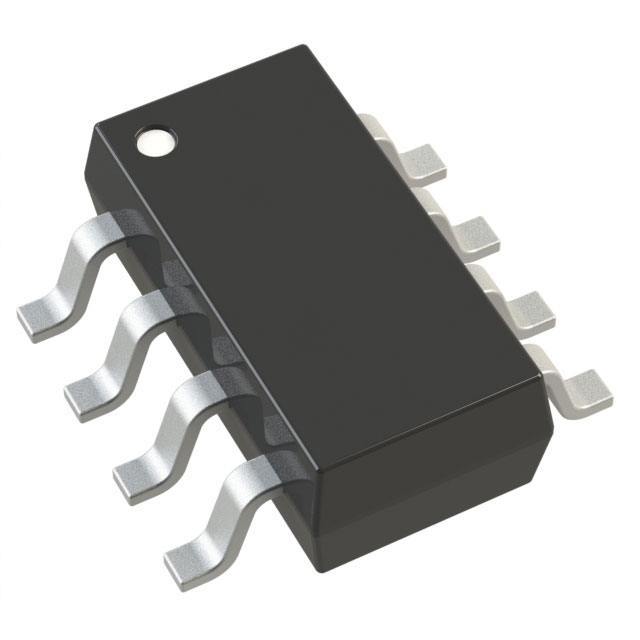

| Part Number | LT3082EDD#TRPBF | LT3082EST#PBF | LT3082EST#TRPBF | LT3082ETS8#TRMPBF |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

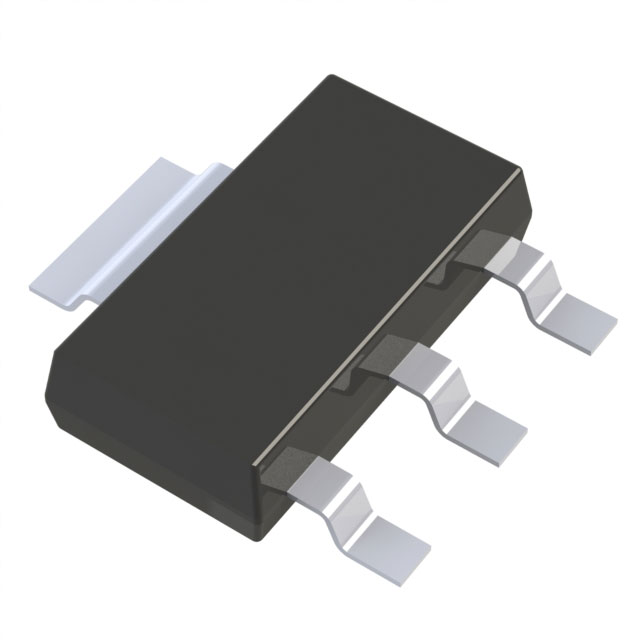

| Description | IC REG LINEAR POS ADJ 200MA 8DFN | IC REG LIN POS ADJ 200MA SOT223 | IC REG LIN POS ADJ 200MA SOT223 | IC REG LIN POS ADJ 200MA TSOT23 |
| Series | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
