LT3082MPST
lmages are for reference only.LT3082MPST
LT3082 - 200MA SINGLE RESISTOR L
DatasheetTO-261-4, TO-261AA
36,157 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Adjustable 1 Output 200mA SOT-223-3
LT3082MPST
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Linear Technology |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 40V |
| Voltage - Output (Min/Fixed) | 0V |
| Voltage - Output (Max) | 38.5V |
| Voltage Dropout (Max) | 1.65V @ 200mA |
| Current - Output | 200mA |
| Current - Quiescent (Iq) | 500 µA |
| PSRR | 90dB ~ 20dB (120Hz ~ 1MHz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Short Circuit |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-261-4, TO-261AA |
| Supplier Device Package | SOT-223-3 |
| Base Product Number | - |
| Current - Supply (Max) | - |
| Product Attribute |  |
 |
 |
 |

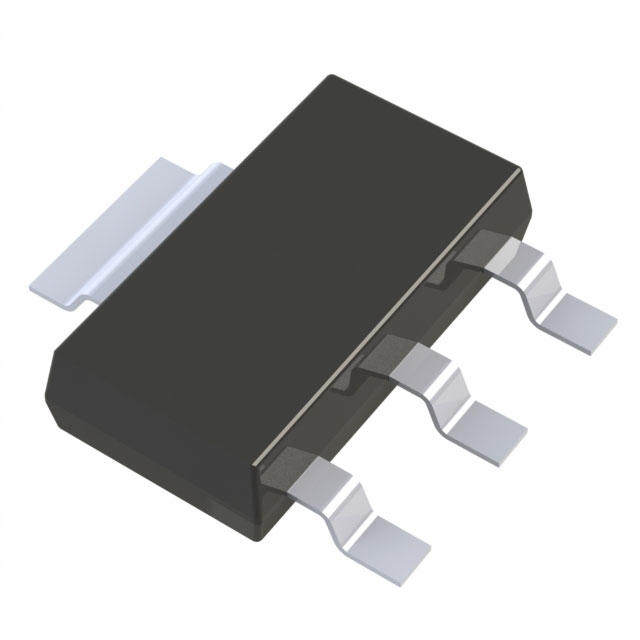

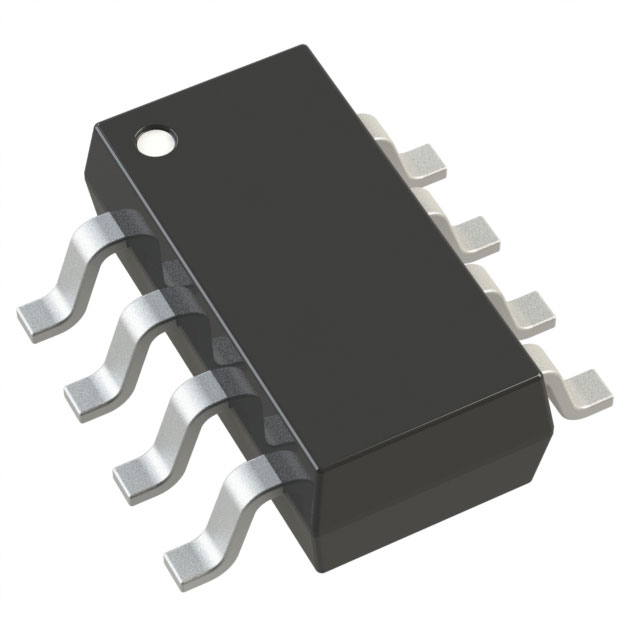

| Part Number | LT3082MPST#PBF | LT3082MPST#TRPBF | LT3007ETS8#TRMPBF | LT3007ETS8#TRPBF |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG LIN POS ADJ 200MA SOT223 | IC REG LIN POS ADJ 200MA SOT223 | IC REG LIN POS ADJ 20MA TSOT23-8 | IC REG LIN POS ADJ 20MA TSOT23-8 |
| Series | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Packaging | Tube | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
