LT3506AEDHD#TRPBF

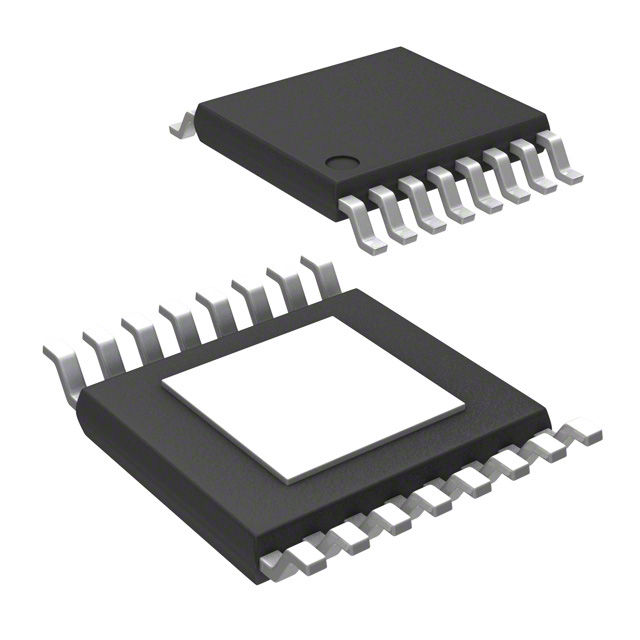

lmages are for reference only.LT3506AEDHD#TRPBF
IC REG BUCK ADJ 1.6A DL 16DFN
Datasheet16-WFDFN Exposed Pad
98,013 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Buck Switching Regulator IC Positive Adjustable 0.8V 2 Output 1.6A 16-WFDFN Exposed Pad
LT3506AEDHD#TRPBF
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators DC DC Switching Regulators |
| Manufacturer | Analog Devices Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 3.6V |
| Voltage - Input (Max) | 25V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | 22V |
| Current - Output | 1.6A |
| Frequency - Switching | 1.1MHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-WFDFN Exposed Pad |
| Supplier Device Package | 16-DFN (5x4) |
| Base Product Number | LT3506 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | LT3506AEDHD#PBF | LT3506AEFE#PBF | LT3506AEFE#TRPBF | LT3506AIDHD#PBF |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG BUCK ADJ 1.6A DL 16DFN | IC REG BUCK ADJ 1.6A DL 16TSSOP | IC REG BUCK ADJ 1.6A DL 16TSSOP | IC REG BUCK ADJ 1.6A DL 16DFN |
| Series | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Packaging | Tube | Tube | Tape & Reel (TR) | Tube |
