LT3756EUD-2#PBF

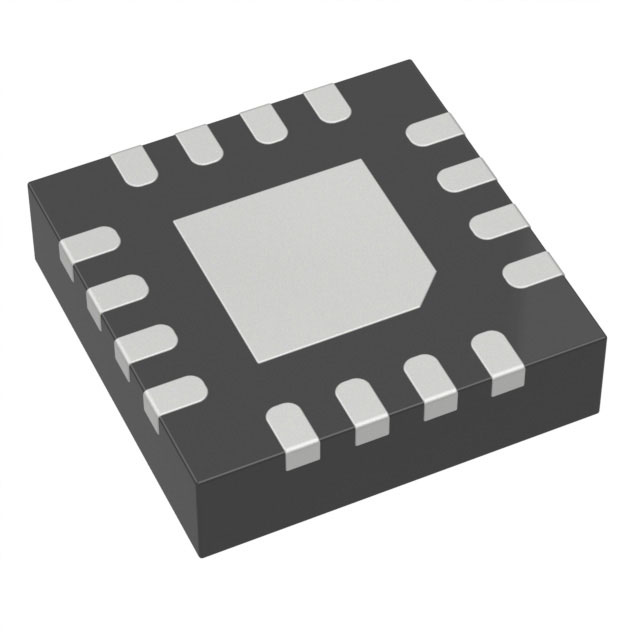

lmages are for reference only.LT3756EUD-2#PBF
IC LED DRIVER CTRLR PWM 16QFN
Datasheet16-WFQFN Exposed Pad
89,533 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
LED Driver IC 1 Output DC DC Controller Flyback, SEPIC, Step-Down (Buck), Step-Up (Boost) Analog, PWM Dimming 16-QFN (3x3)
LT3756EUD-2#PBF
| Category | Integrated Circuits (ICs) - Power Management PMIC - LED Drivers |
| Manufacturer | Analog Devices Inc. |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | DC DC Controller |
| Topology | Flyback, SEPIC, Step-Down (Buck), Step-Up (Boost) |
| Internal Switch(s) | No |
| Number of Outputs | 1 |
| Voltage - Supply (Min) | 6V |
| Voltage - Supply (Max) | 100V |
| Voltage - Output | - |
| Current - Output / Channel | - |
| Frequency | 100kHz ~ 1MHz |
| Dimming | Analog, PWM |
| Applications | Lighting |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 16-WFQFN Exposed Pad |
| Supplier Device Package | 16-QFN (3x3) |
| Base Product Number | LT3756 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
 |
 |
| Part Number | LT3756EUD-2#TRPBF | LT3756EUD#PBF | LT3756EUD#TRPBF | LT3756EUD-1#PBF |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC LED DRIVER CTRLR PWM 16QFN | IC LED DRIVER CTRLR PWM 16QFN | IC LED DRIVER CTRLR PWM 16QFN | IC LED DRIVER CTRLR PWM 16QFN |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
