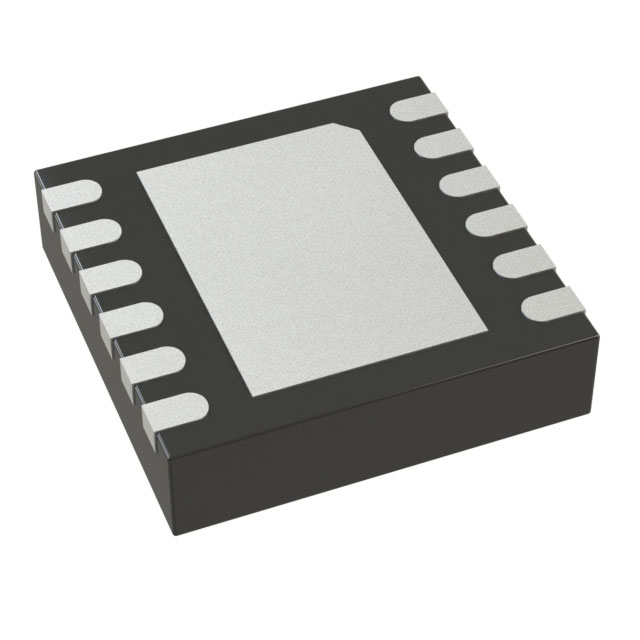

LT3909EDD#PBF
lmages are for reference only.LT3909EDD#PBF
IC LED DRVR RGLTR PWM 50MA 12DFN
Datasheet12-WFDFN Exposed Pad
40,841 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
LED Driver IC 2 Output DC DC Regulator Step-Up (Boost) Analog, PWM Dimming 50mA 12-DFN (3x3)
LT3909EDD#PBF
| Category | Integrated Circuits (ICs) - Power Management PMIC - LED Drivers |
| Manufacturer | Analog Devices Inc. |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | DC DC Regulator |
| Topology | Step-Up (Boost) |
| Internal Switch(s) | Yes |
| Number of Outputs | 2 |
| Voltage - Supply (Min) | 2.9V |
| Voltage - Supply (Max) | 40V |
| Voltage - Output | 40V |
| Current - Output / Channel | 50mA |
| Frequency | 2MHz |
| Dimming | Analog, PWM |
| Applications | - |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 12-WFDFN Exposed Pad |
| Supplier Device Package | 12-DFN (3x3) |
| Base Product Number | LT3909 |
| Grade | Automotive |
| Qualification | - |
| Product Attribute | |
|
|
|

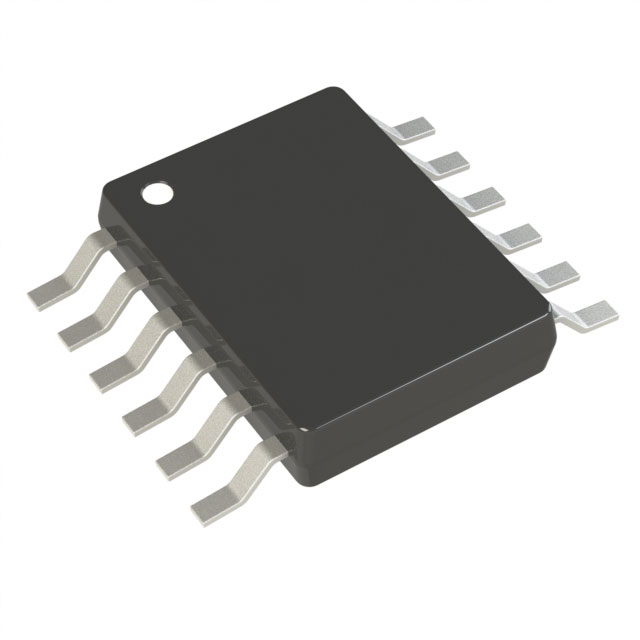

| Part Number | LT3909EDD#TRPBF | LT3909EMSE#PBF | LT3909EMSE#TRPBF | LT3003EMSE#PBF |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC LED DRVR RGLTR PWM 50MA 12DFN | IC LED DRV RGLTR PWM 50MA 12MSOP | IC LED DRV RGLTR PWM 50MA 12MSOP | IC LED DRV RGLTR PWM 10MSOP |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tape & Reel (TR) | Tube |
