LT8304ES8E-1#PBF
lmages are for reference only.LT8304ES8E-1#PBF

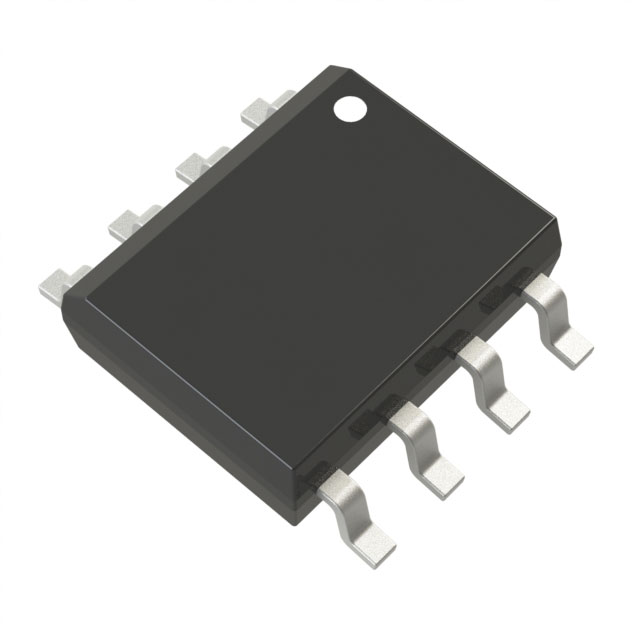

IC REG FLYBACK ADJ 2A 8SOIC
Datasheet8-SOIC (0.154", 3.90mm Width) Exposed Pad
42,507 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Flyback Switching Regulator IC Positive or Negative, Isolation Capable Adjustable 1V 1 Output 2A (Switch) 8-SOIC (0.154", 3.90mm Width) Exposed Pad
LT8304ES8E-1#PBF
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators DC DC Switching Regulators |
| Manufacturer | Analog Devices Inc. |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Function | Step-Up/Step-Down |
| Output Configuration | Positive or Negative, Isolation Capable |
| Topology | Flyback |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 3V |
| Voltage - Input (Max) | 100V |
| Voltage - Output (Min/Fixed) | 1V |
| Voltage - Output (Max) | 150V (Switch) |
| Current - Output | 2A (Switch) |
| Frequency - Switching | 11kHz ~ 350kHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package | 8-SOIC-EP |
| Base Product Number | LT8304 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | LT8304ES8E#PBF | LT8304ES8E#TRPBF | LT8304ES8E-1#TRPBF | LT8304HS8E#PBF |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG FLYBACK ADJ 2A 8SOIC | IC REG FLYBACK ADJ 2A 8SOIC | IC REG FLYBACK ADJ 2A 8SOIC | IC REG FLYBACK ADJ 2A 8SOIC |
| Series | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Packaging | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
