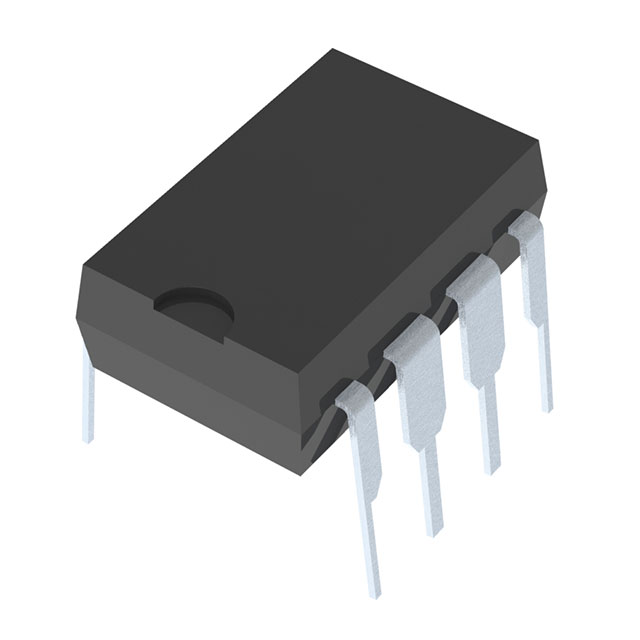

lmages are for reference only.LTC1155CN8#PBF
LTC1155 - DUAL HIGH SIDE MICROPO
Datasheet8-DIP (0.300", 7.62mm)
21,581 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
High-Side Gate Driver IC Non-Inverting 8-PDIP
LTC1155CN8#PBF
| Category | Integrated Circuits (ICs) - Power Management PMIC - Gate Drivers |
| Manufacturer | Linear Technology |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Driven Configuration | High-Side |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 18V |
| Logic Voltage - VIL, VIH | 0.8V, 2V |
| Current - Peak Output (Source, Sink) | 50mA, 50mA |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 450µs, 26µs |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-PDIP |
| Base Product Number | LTC1155 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
 |
 |
| Part Number | LTC1155CN8#PBF | LTC1155CS8#PBF | LTC1155CS8#TR | LTC1155CS8#TRPBF |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC GATE DRVR HIGH-SIDE 8DIP | IC GATE DRVR HIGH-SIDE 8SOIC | IC GATE DRVR HIGH-SIDE 8SOIC | IC GATE DRVR HIGH-SIDE 8SOIC |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tape & Reel (TR) | Tape & Reel (TR) |
