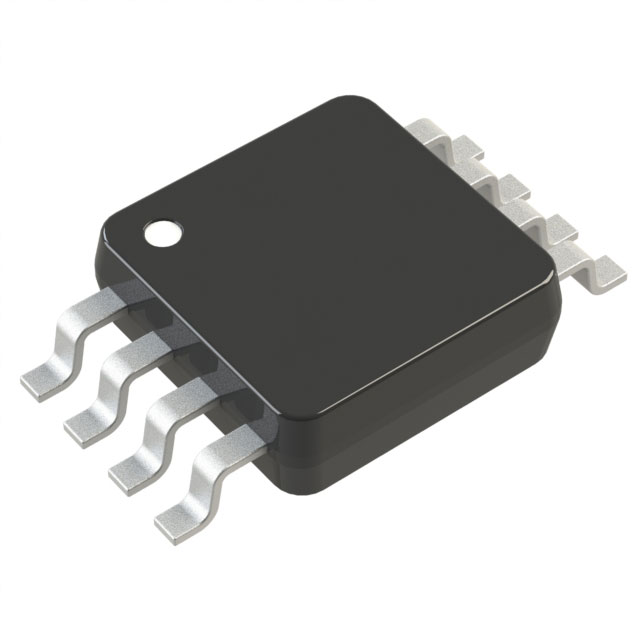

Charge Pump Switching Regulator IC Positive Fixed 5V 1 Output 20mA 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
LTC1522CMS8#PBF
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators DC DC Switching Regulators |
| Manufacturer | Analog Devices Inc. |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Function | Step-Up |
| Output Configuration | Positive |
| Topology | Charge Pump |
| Output Type | Fixed |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.7V |
| Voltage - Input (Max) | 5V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Current - Output | 20mA |
| Frequency - Switching | 700kHz |
| Synchronous Rectifier | No |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-MSOP |
| Base Product Number | LTC1522 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | LTC1522CMS8#TRPBF | LTC1502CMS8-3.3#PBF | LTC1502CMS8-3.3#TRPBF | LTC1502CS8-3.3#PBF |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG CHARGE PUMP 5V 20MA 8MSOP | IC REG CHRG PUMP 3.3V 10MA 8MSOP | IC REG CHRG PUMP 3.3V 10MA 8MSOP | IC REG CHARGE PUMP 3.3V 10MA 8SO |
| Series | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Packaging | Tape & Reel (TR) | Tube | Tape & Reel (TR) | Tube |
