LTC2156CUP-14#PBF

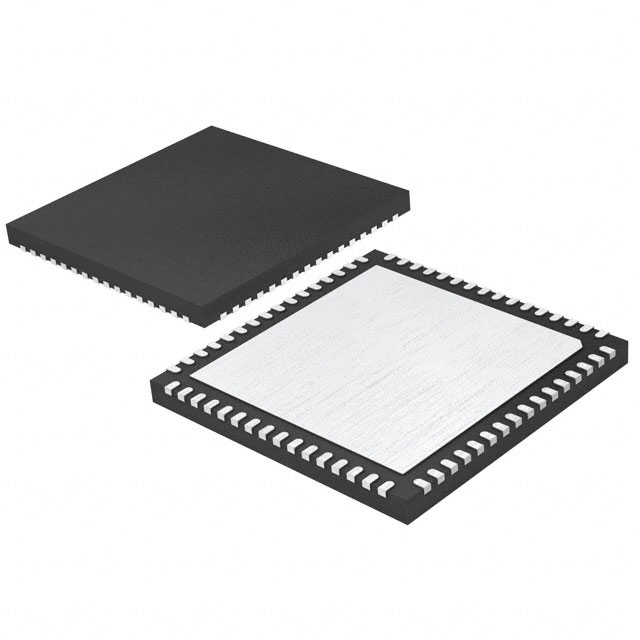

lmages are for reference only.LTC2156CUP-14#PBF
IC ADC 14BIT PIPELINED 64QFN
Datasheet64-WFQFN Exposed Pad
94,729 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
14 Bit Analog to Digital Converter 2 Input 2 Pipelined 64-QFN (9x9)
LTC2156CUP-14#PBF
| Category | Integrated Circuits (ICs) - Data Acquisition - Analog to Digital Converters ADC |
| Manufacturer | Analog Devices Inc. |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Number of Bits | 14 |
| Sampling Rate (Per Second) | 210M |
| Number of Inputs | 2 |
| Input Type | Differential |
| Data Interface | LVDS - Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 2 |
| Architecture | Pipelined |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 1.7V ~ 1.9V |
| Voltage - Supply, Digital | 1.7V ~ 1.9V |
| Features | Simultaneous Sampling |
| Operating Temperature | 0°C ~ 70°C |
| Package / Case | 64-WFQFN Exposed Pad |
| Supplier Device Package | 64-QFN (9x9) |
| Mounting Type | Surface Mount |
| Base Product Number | LTC2156 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | LTC2156CUP-12#PBF | LTC2156CUP-12#TRPBF | LTC2156CUP-14#TRPBF | LTC2156IUP-12#PBF |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC ADC 12BIT PIPELINED 64QFN | IC ADC 12BIT PIPELINED 64QFN | IC ADC 14BIT PIPELINED 64QFN | IC ADC 12BIT PIPELINED 64QFN |
| Series | - | - | - | - |
| Packaging | Tube | Tape & Reel (TR) | Tape & Reel (TR) | Tube |
