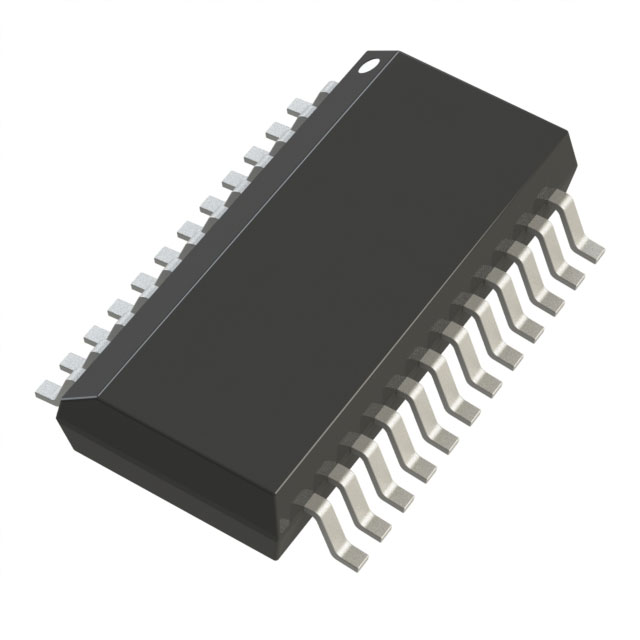

LTC3722EGN-1#PBF
lmages are for reference only.LTC3722EGN-1#PBF
IC REG CTRLR FULL-BRIDGE 24SSOP
Datasheet24-SSOP (0.154", 3.90mm Width)
27,567 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Full-Bridge Regulator Positive, Isolation Capable Output Step-Up/Step-Down DC-DC Controller IC 24-SSOP
LTC3722EGN-1#PBF
| Category | Integrated Circuits (ICs) - Power Management PMIC - DC DC Switching Controllers |
| Manufacturer | Analog Devices Inc. |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Output Type | Transistor Driver |
| Function | Step-Up/Step-Down |
| Output Configuration | Positive, Isolation Capable |
| Topology | Full-Bridge |
| Number of Outputs | 2 |
| Output Phases | 2 |
| Voltage - Supply (Vcc/Vdd) | 3.8V ~ 10.25V |
| Frequency - Switching | - |
| Duty Cycle (Max) | 98.5% |
| Synchronous Rectifier | Yes |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Current Limit, Ramp, Soft Start |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 24-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package | 24-SSOP |
| Base Product Number | LTC3722 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | LTC3722EGN-1#TRPBF | LTC3722EGN-2#PBF | LTC3722EGN-2#TRPBF | LTC3721EGN-1#PBF |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG CTRLR FULL-BRIDGE 24SSOP | IC REG CTRLR FULL-BRIDGE 24SSOP | IC REG CTRLR FULL-BRIDGE 24SSOP | IC REG CTRLR PUSH-PULL 16SSOP |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tube | Tape & Reel (TR) | Tube |
