LTC3775EMSE#PBF

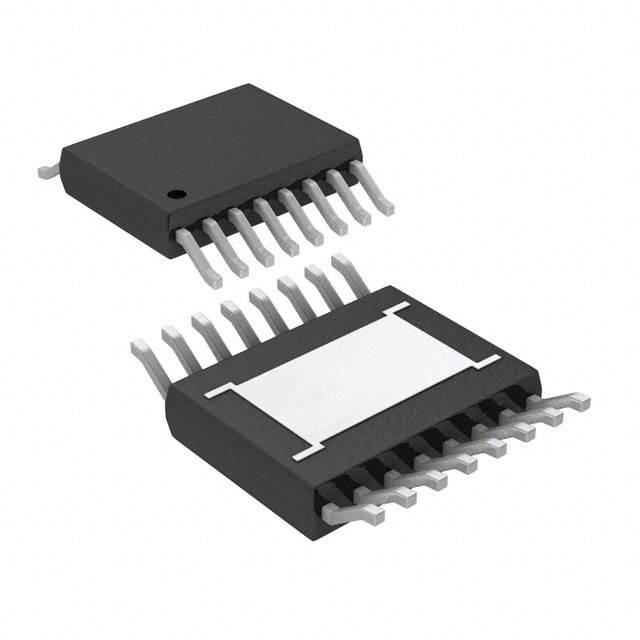

lmages are for reference only.LTC3775EMSE#PBF
IC REG CTRLR BUCK 16MSOP
Datasheet16-TFSOP (0.118", 3.00mm Width) Exposed Pad
36,379 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Buck Regulator Positive Output Step-Down DC-DC Controller IC 16-MSOP-EP
LTC3775EMSE#PBF
| Category | Integrated Circuits (ICs) - Power Management PMIC - DC DC Switching Controllers |
| Manufacturer | Analog Devices Inc. |
| Series | PolyPhase® |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Output Type | Transistor Driver |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 38V |
| Frequency - Switching | 250kHz ~ 1MHz |
| Duty Cycle (Max) | 90% |
| Synchronous Rectifier | Yes |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Current Limit, Enable, Frequency Control, Soft Start |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-TFSOP (0.118", 3.00mm Width) Exposed Pad |
| Supplier Device Package | 16-MSOP-EP |
| Base Product Number | LTC3775 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
|
|
|
| Part Number | LTC3775EMSE#TRPBF | LTC3701EGN#PBF | LTC3701EGN#TRPBF | LTC3703EG#PBF |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG CTRLR BUCK 16MSOP | IC REG CTRLR BUCK 16SSOP | IC REG CTRLR BUCK 16SSOP | IC REG CTRLR BUCK 28SSOP |
| Series | PolyPhase® | - | - | - |
| Packaging | Tape & Reel (TR) | Tube | Tape & Reel (TR) | Tube |
