LTC4355IDE#PBF
lmages are for reference only.LTC4355IDE#PBF
IC OR CTRLR SRC SELECT 14DFN
Datasheet14-WFDFN Exposed Pad
35,329 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
OR Controller N+1 ORing Controller N-Channel 2:1 14-DFN (4x3)
LTC4355IDE#PBF
| Category | Integrated Circuits (ICs) - Power Management PMIC - OR Controllers-Ideal Diodes |
| Manufacturer | Analog Devices Inc. |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | N+1 ORing Controller |
| FET Type | N-Channel |
| Ratio - Input:Output | 2:1 |
| Internal Switch(s) | No |
| Current - Output (Max) | - |
| Current - Supply | 2 mA |
| Voltage - Supply | 48V, -48V |
| Applications | -48V Dist Power Systems, AdvancedTCA® Systems |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 14-WFDFN Exposed Pad |
| Supplier Device Package | 14-DFN (4x3) |
| Base Product Number | LTC4355 |
| Delay Time - ON | - |
| Delay Time - OFF | 300 ns |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

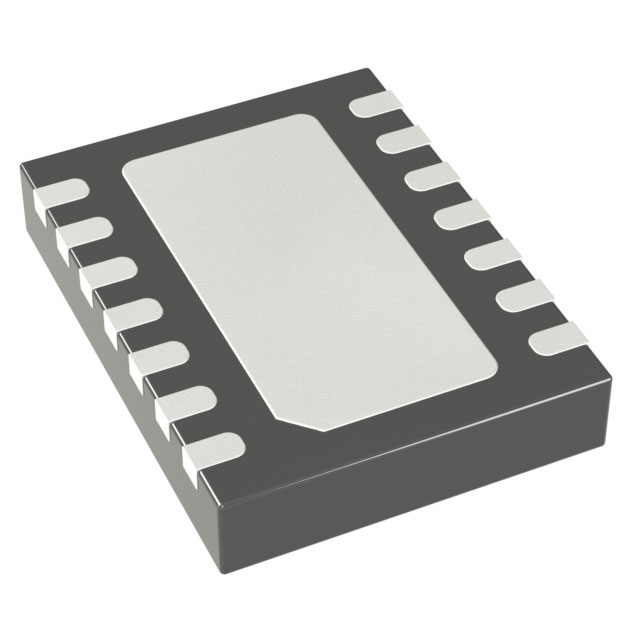

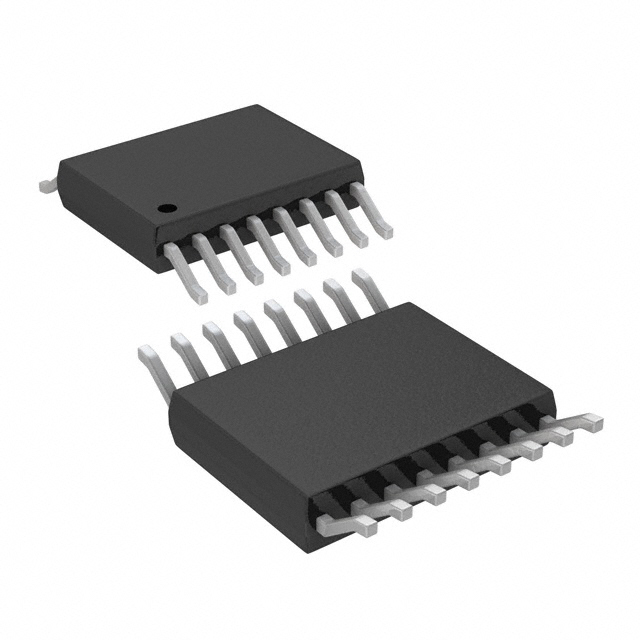

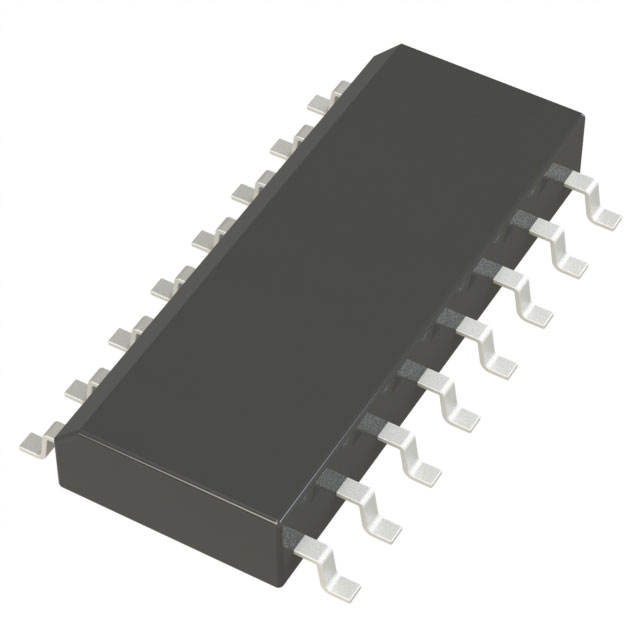

| Part Number | LTC4355IDE#TRPBF | LTC4355IMS#PBF | LTC4355IMS#TRPBF | LTC4355IS#PBF |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC OR CTRLR SRC SELECT 14DFN | IC OR CTRLR SRC SELECT 16MSOP | IC OR CTRLR SRC SELECT 16MSOP | IC OR CTRLR SRC SELECT 16SOIC |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
