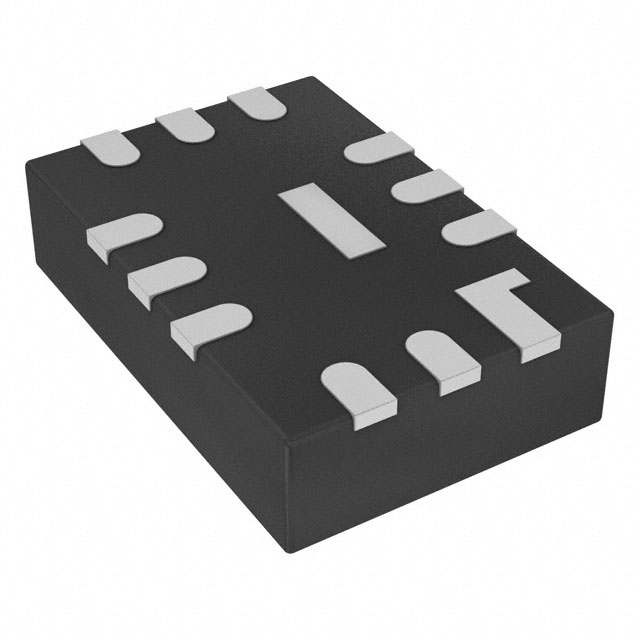

LTC5548IUDB#TRMPBF
lmages are for reference only.LTC5548IUDB#TRMPBF
2GHZ TO 14GHZ MICROWAVE MIXER WI
Datasheet12-VFQFN Exposed Pad
82,999 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RF Mixer IC Radar 2GHz ~ 14GHz 12-QFN (3x2)
LTC5548IUDB#TRMPBF
| Category | RF and Wireless - RF Mixers - |
| Manufacturer | Analog Devices Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| RF Type | Radar |
| Frequency | 2GHz ~ 14GHz |
| Number of Mixers | 2 |
| Gain | - |
| Noise Figure | 9.6dB |
| Secondary Attributes | - |
| Current - Supply | 136mA |
| Voltage - Supply | 3.3V |
| Mounting Type | Surface Mount |
| Package / Case | 12-VFQFN Exposed Pad |
| Supplier Device Package | 12-QFN (3x2) |
| Base Product Number | LTC5548 |
| Product Attribute |  |
 |
 |
 |
| Part Number | LTC5548IUDB#PBF | LTC5548IUDB#TRPBF | LTC5540IUH#TRPBF | LTC5551IUF#TRPBF |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | IC MIXER 2GHZ-14GHZ 12QFN | IC MIXER 2GHZ-14GHZ 12QFN | IC MIXER 600MHZ-1.3GHZ DWN 20QFN | IC MIXR .3-3.5GHZ DWNCONV 16QFN |
| Series | - | - | - | - |
| Packaging | Strip | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
