LTC7802EUFDM#PBF

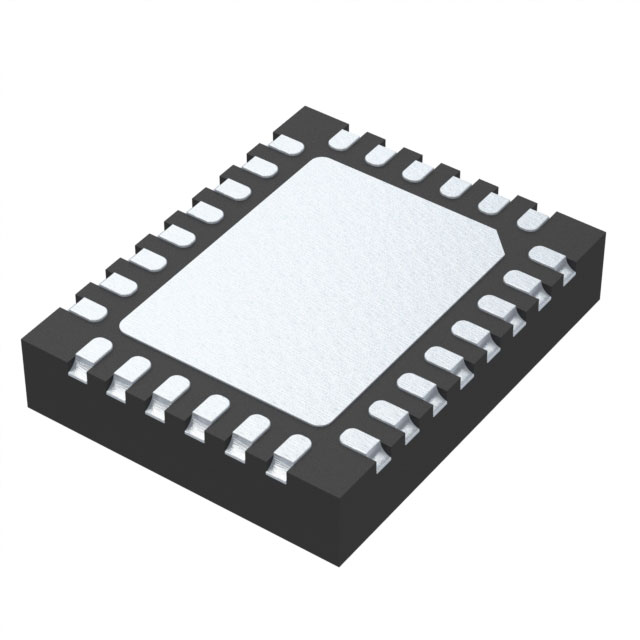

lmages are for reference only.LTC7802EUFDM#PBF
40V, LOW IQ DUAL PHSE SYCH STP-D
Datasheet28-WFQFN Exposed Pad
55,334 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Buck Regulator Positive Output Step-Down DC-DC Controller IC 28-QFN (4x5)
LTC7802EUFDM#PBF
| Category | Integrated Circuits (ICs) - Power Management PMIC - DC DC Switching Controllers |
| Manufacturer | Analog Devices Inc. |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Output Type | Transistor Driver |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 2 |
| Output Phases | 2 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 40V |
| Frequency - Switching | 100kHz ~ 3MHz |
| Duty Cycle (Max) | 99% |
| Synchronous Rectifier | Yes |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Enable, Frequency Control, Power Good, Soft Start, Tracking |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount, Wettable Flank |
| Package / Case | 28-WFQFN Exposed Pad |
| Supplier Device Package | 28-QFN (4x5) |
| Base Product Number | LTC7802 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | LTC7802EUFDM#TRPBF | LTC7802EUFDM-3.3#PBF | LTC7802EUFDM-3.3#TRPBF | LTC7800EUDC#PBF |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 40V, LOW IQ DUAL PHSE SYCH STP-D | 40V LOW IQ DUAL BUCK CTL W/ 3.3V | 40V LOW IQ DUAL BUCK CTL W/ 3.3V | IC REG CTRLR SYNC BUCK 60V 20QFN |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tube | Tape & Reel (TR) | Tube |
