Product CatalogPart Number
LTL-1BEDJ
Manufacturer
Lite-On Inc.Description
LED GRN/YLW DIFFUSED T/H
Datasheet
DatasheetPackage
Radial
In Stock
44,336 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation

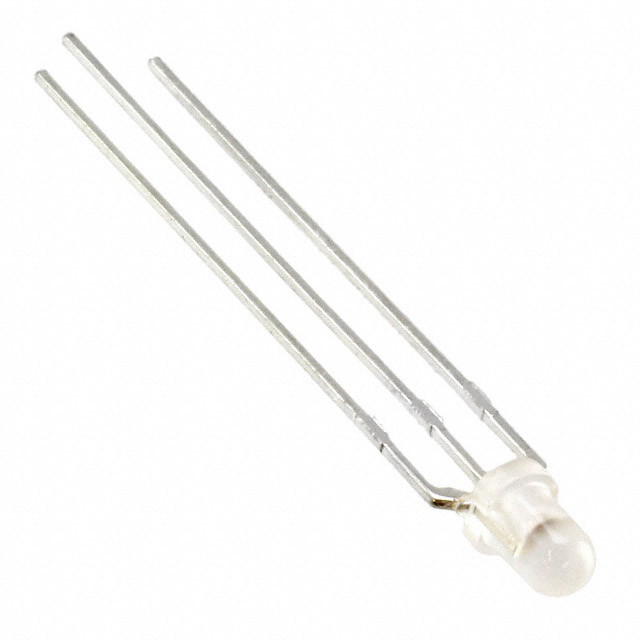

LTL-1BEDJ
LTL-1BEDJ
lmages are for reference only.Payment Methods
Delivery Services
Green, Yellow 573nm Green, 590nm Yellow LED Indication - Discrete 2.1V Green, 2.1V Yellow Radial
Quick Inquiry
LTL-1BEDJ
Specifications
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Lite-On Inc. |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Color | Green, Yellow |
| Configuration | Common Cathode |
| Lens Color | White |
| Lens Transparency | Diffused |
| Millicandela Rating | 19mcd Green, 19mcd Yellow |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
| Voltage - Forward (Vf) (Typ) | 2.1V Green, 2.1V Yellow |
| Current - Test | 20mA Green, 20mA Yellow |
| Viewing Angle | 75° |
| Mounting Type | Through Hole |
| Wavelength - Dominant | 573nm Green, 590nm Yellow |
| Wavelength - Peak | 565nm Green, 585nm Yellow |
| Features | - |
| Package / Case | Radial |
| Supplier Device Package | - |
| Size / Dimension | - |
| Height (Max) | 7.10mm |
| Base Product Number | LTL-1 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
|
|
 |
| Part Number | LTL-1BEHJ | LTL-1BEHJ-012 | LTL-1BEHKV | LTL-10223W |
| Manufacturer | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | LED GRN/ORANGE-RED DIFF 3MM T/H | LED GRN/RED-ORANGE DIFF 3MM T/H | LED GREEN/RED CLEAR T/H | LED RED DIFFUSED T/H |
| Series | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| Packaging | Bulk | Tape & Reel (TR) | Bulk | Bulk |
