LTM-8529Y
lmages are for reference only.LTM-8529Y
DISP 7SEG 0.56" 1.5DIG YLW 18DIP
Datasheet18-DIP (0.600", 15.24mm), 15 Leads
24,603 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Display Modules - LED Character and Numeric Yellow 7-Segment 1.5 Character Serial Input 0.4mA 0.750" H x 0.984" W x 0.315" D (19.05mm x 25.00mm x 8.00mm) 18-DIP (0.600", 15.24mm), 15 Leads
LTM-8529Y
| Category | Optoelectronics - LED Character and Numeric - |
| Manufacturer | Lite-On Inc. |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Number of Characters | 1.5 |
| Size / Dimension | 0.750" H x 0.984" W x 0.315" D (19.05mm x 25.00mm x 8.00mm) |
| Digit/Alpha Size | 0.56" (14.22mm) |
| Display Type | 7-Segment |
| Common Pin | Serial Input |
| Color | Yellow |
| Voltage - Forward (Vf) (Typ) | - |
| Current - Test | 0.4mA |
| Millicandela Rating | 2.4mcd |
| Wavelength - Peak | 585nm |
| Power Dissipation (Max) | 335mW |
| Package / Case | 18-DIP (0.600", 15.24mm), 15 Leads |
| Base Product Number | LTM-8529 |
| Display Format | - |
| Product Attribute | |
|
|
 |

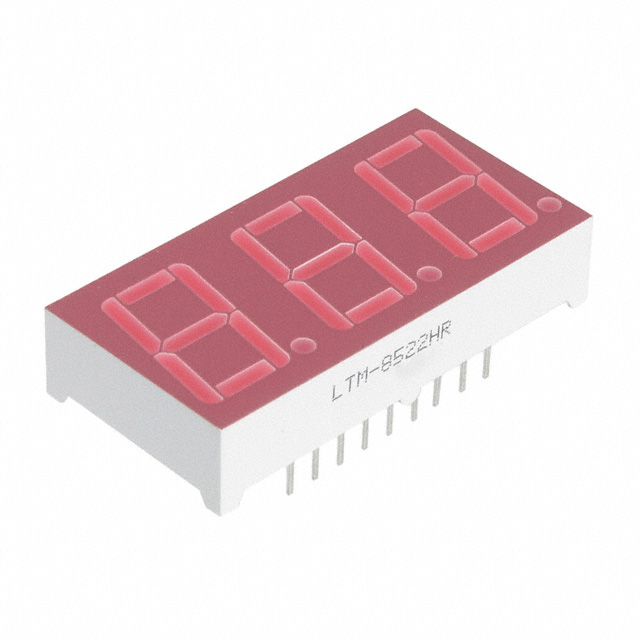

| Part Number | LTM-8529HR | LTM-8522E | LTM-8522G | LTM-8522HR |
| Manufacturer | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DISP 7SEG 0.56" 1.5DIG RED 18DIP | DISP 7SEG 0.56" TRP OR-RED 18DIP | DISPLAY 7SEG 0.56" TRP GRN 18DIP | DISPLAY 7SEG 0.56" TRP RED 18DIP |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tube |
