LTP-3785E
lmages are for reference only.LTP-3785E
DUAL LED ALPHANUMERUC DISPLAY OR
Datasheet18-DIP (0.600", 15.24mm)
52,124 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Display Modules - LED Character and Numeric Red-Orange 14-Segment, Alphanumeric 2 Character Common Anode 2V 20mA 0.833" H x 0.989" W x 0.307" D (21.15mm x 25.12mm x 7.80mm) 18-DIP (0.600", 15.24mm)
LTP-3785E
| Category | Optoelectronics - LED Character and Numeric - |
| Manufacturer | Lite-On Inc. |
| Series | - |
| Packaging | Tube |
| RoHS Status | |
| Number of Characters | 2 |
| Size / Dimension | 0.833" H x 0.989" W x 0.307" D (21.15mm x 25.12mm x 7.80mm) |
| Digit/Alpha Size | 0.54" (13.60mm) |
| Display Type | 14-Segment, Alphanumeric |
| Common Pin | Common Anode |
| Color | Red-Orange |
| Voltage - Forward (Vf) (Typ) | 2V |
| Current - Test | 20mA |
| Millicandela Rating | 2mcd |
| Wavelength - Peak | 630nm |
| Power Dissipation (Max) | 75mW |
| Package / Case | 18-DIP (0.600", 15.24mm) |
| Base Product Number | - |
| Display Format | - |
| Product Attribute |  |
|
 |
|

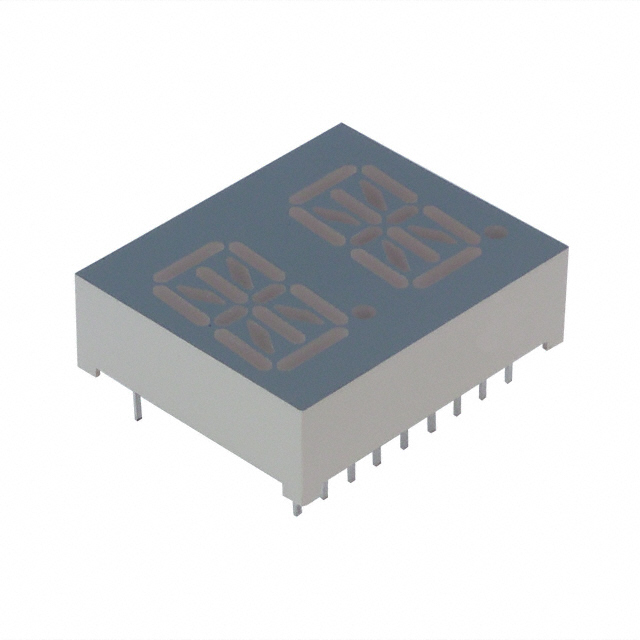

| Part Number | LTP-3784E | LTP-3784E-01 | LTP-3784G | LTP-3784G-01 |
| Manufacturer | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DISP 14SEG 0.54" DBL OR-RD 18DIP | DISPLAY ALPHA-NUM ORN 0.54" CC | DISP 14SEG 0.54" DBL GRN 18DIP | DISP 14SEG 0.54" DBL GRN 18DIP |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tube |
