LTS-4801B
lmages are for reference only.LTS-4801B
DISPLAY 7SEG 0.39" SGL BLU 10DIP
Datasheet10-DIP (0.300", 7.62mm)
59,711 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Display Modules - LED Character and Numeric Blue 7-Segment 1 Character Common Anode 3.8V 20mA 0.508" H x 0.382" W x 0.276" D (12.90mm x 9.70mm x 7.00mm) 10-DIP (0.300", 7.62mm)
LTS-4801B
| Category | Optoelectronics - LED Character and Numeric - |
| Manufacturer | Lite-On Inc. |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Number of Characters | 1 |
| Size / Dimension | 0.508" H x 0.382" W x 0.276" D (12.90mm x 9.70mm x 7.00mm) |
| Digit/Alpha Size | 0.39" (10.00mm) |
| Display Type | 7-Segment |
| Common Pin | Common Anode |
| Color | Blue |
| Voltage - Forward (Vf) (Typ) | 3.8V |
| Current - Test | 20mA |
| Millicandela Rating | 3.6mcd |
| Wavelength - Peak | 428nm |
| Power Dissipation (Max) | 65mW |
| Package / Case | 10-DIP (0.300", 7.62mm) |
| Base Product Number | LTS-4801 |
| Display Format | - |
| Product Attribute |  |
|
 |
 |
| Part Number | LTS-4801E | LTS-4801G | LTS-4801JD | LTS-4801JF |
| Manufacturer | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

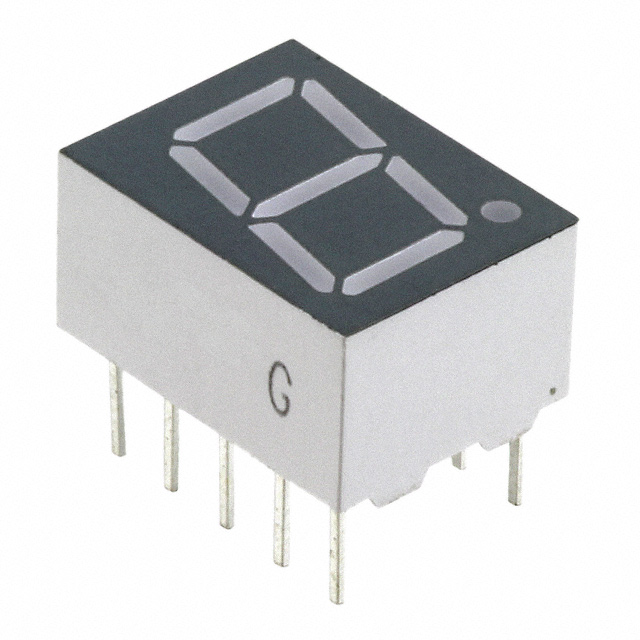

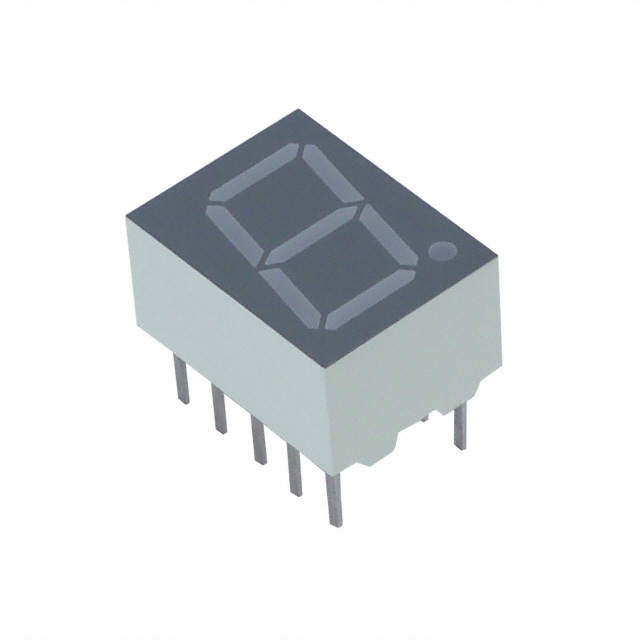

| Description | DISP 7SEG 0.39" SGL OR-RED 10DIP | LED 7-SEG .40" 1DIGIT GRN CA | DISPLAY 7SEG 0.39" SGL RED 10DIP | DISP 7SEG 0.39" SGL OR-YLW 10DIP |
| Series | - | * | - | - |
| Packaging | Tube | Bulk | Tube | Tube |
