LTSR 6-NP
lmages are for reference only.LTSR 6-NP
SENSOR CURRENT HALL 6A AC/DC
DatasheetModule, Single Pass Through
73,159 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Current Sensor 6A 1 Channel Hall Effect, Closed Loop Bidirectional Module, Single Pass Through
LTSR 6-NP
| Category | Sensors, Transducers - Current Sensors - |
| Manufacturer | LEM USA Inc. |
| Series | LTSR |
| Packaging | Tube |
| RoHS Status | RoHS Compliant |
| For Measuring | AC/DC |
| Sensor Type | Hall Effect, Closed Loop |
| Current - Sensing | 6A |
| Number of Channels | 1 |
| Output | Ratiometric, Voltage |
| Sensitivity | 104.16mV/A |
| Frequency | DC ~ 200kHz |
| Linearity | ±0.1% |
| Accuracy | ±0.2% |
| Voltage - Supply | 5V |
| Response Time | 0.4µs |
| Current - Supply (Max) | - |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Bidirectional |
| Mounting Type | Through Hole |
| Package / Case | Module, Single Pass Through |
| Supplier Device Package | - |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

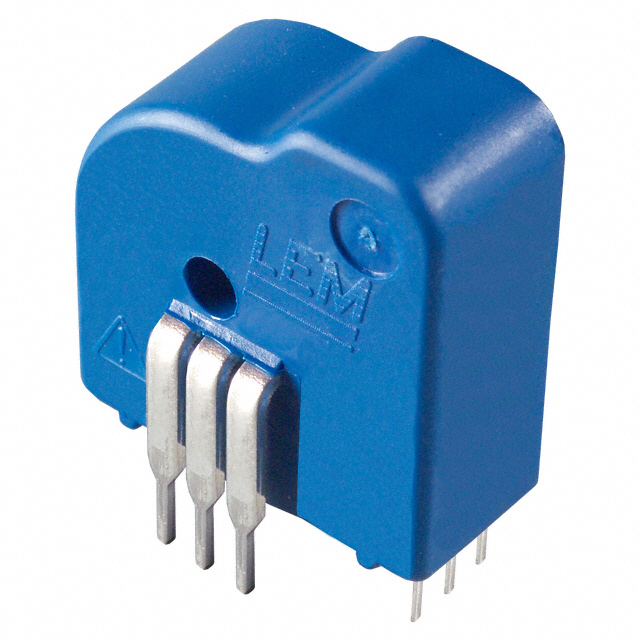

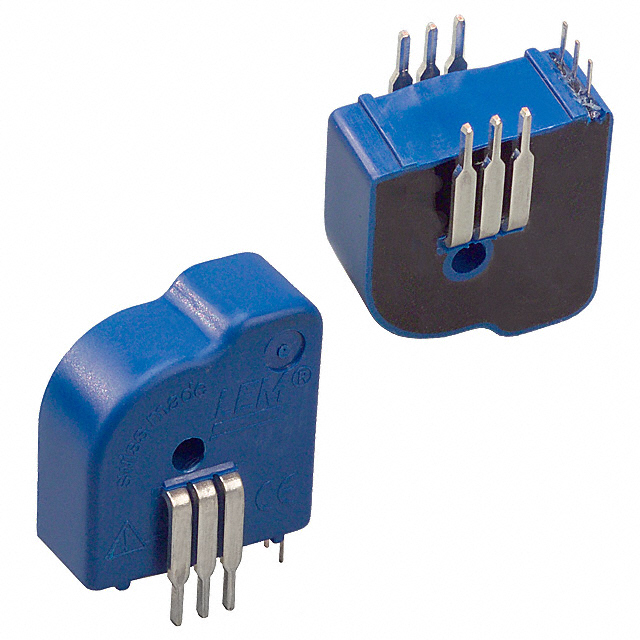

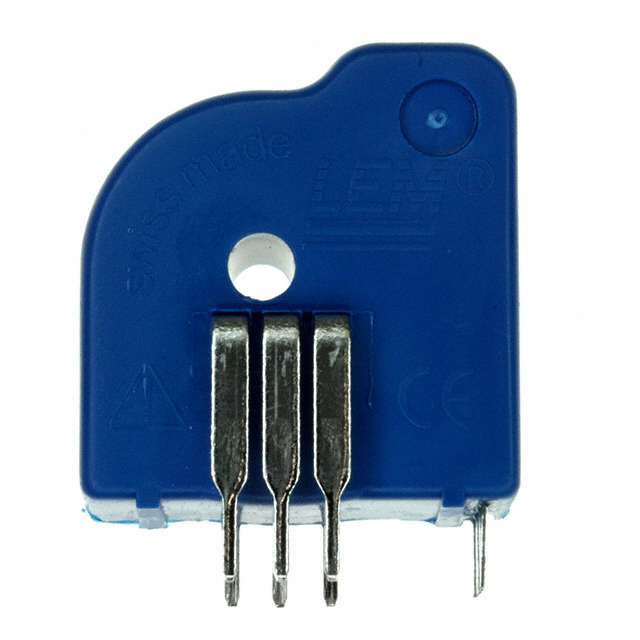

| Part Number | LTS 15-NP | LTS 25-NP | LTS 6-NP | LTSR 15-NP |
| Manufacturer | LEM USA Inc. | LEM USA Inc. | LEM USA Inc. | LEM USA Inc. |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | SENSOR CURRENT HALL 15A AC/DC | SENSOR CURRENT HALL 25A AC/DC | SENSOR CURRENT HALL 6A AC/DC | SENSOR CURRENT HALL 15A AC/DC |
| Series | LEM USA Inc. | LEM USA Inc. | LEM USA Inc. | LEM USA Inc. |
| Packaging | Bulk | Bulk | Bulk | Tray |
