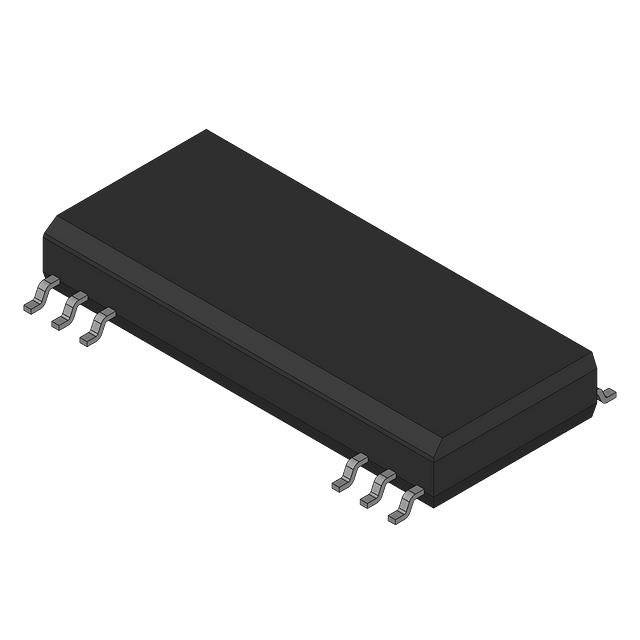

LV5071M-TLM-H
lmages are for reference only.Payment Methods
Delivery Services
Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 1A 12-LSOP (0.173", 4.40mm Width) Exposed Pad
LV5071M-TLM-H
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators DC DC Switching Regulators |
| Manufacturer | onsemi |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.95V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | 3.3V |
| Current - Output | 1A |
| Frequency - Switching | 2.2MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 12-LSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 12-MFPS |
| Base Product Number | LV5071 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
|

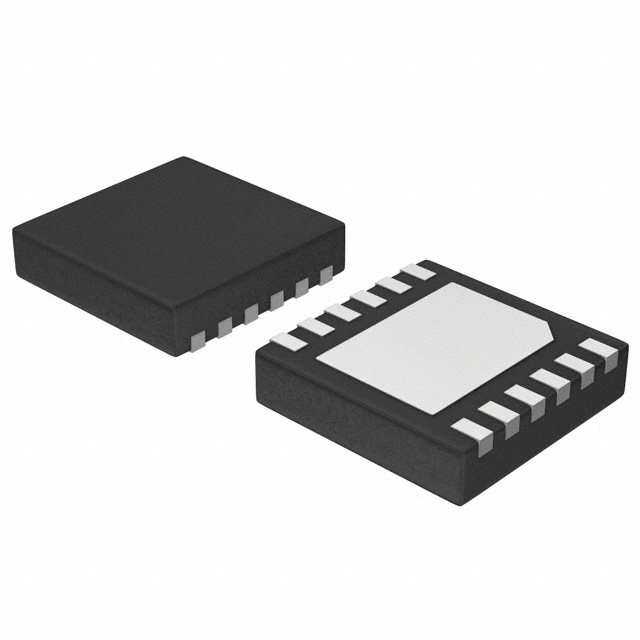

| Part Number | LV5071M-TLM-H | LV5072M-TLM-H | LV52117QATXG | LV52130A0XA-VH |
| Manufacturer | Sanyo | Sanyo | onsemi | onsemi |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | IC REG BUCK ADJ 1A 12MFPS | IC REG BUCK ADJ 2A 12MFPS | IC REG BOOST ADJ 100MA DL 12TDFN | IC REG BST PROG 900MA DL 15WLCSP |
| Series | Sanyo | Sanyo | onsemi | onsemi |
| Packaging | Bulk | Bulk | Tape & Reel (TR) | Tape & Reel (TR) |
