LW ETSG-ABCA-JKPL-1-30-R18-Z

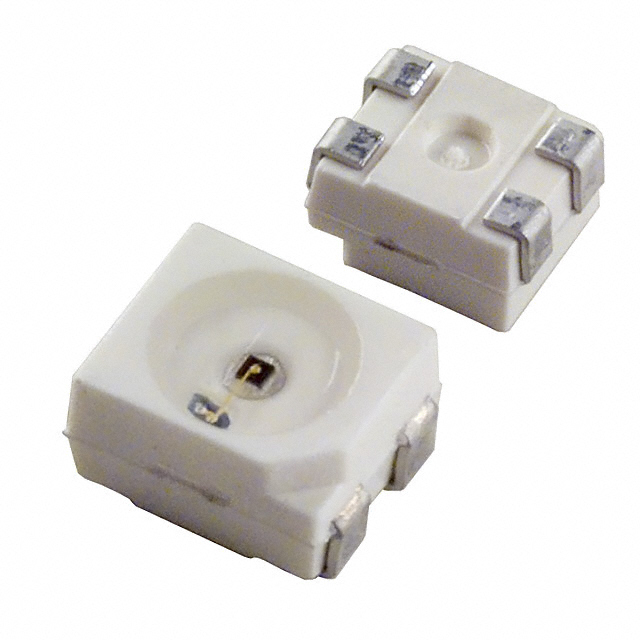

lmages are for reference only.LW ETSG-ABCA-JKPL-1-30-R18-Z
LED WHITE DIFFUSED 4PLCC SMD
Datasheet4-PLCC
24,423 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
White LED Indication - Discrete 3.3V 4-PLCC
LW ETSG-ABCA-JKPL-1-30-R18-Z
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | ams-OSRAM USA INC. |
| Series | Power TOPLED® |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Color | White |
| Configuration | - |
| Lens Color | Yellow |
| Lens Transparency | Diffused |
| Millicandela Rating | 2475mcd |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
| Voltage - Forward (Vf) (Typ) | 3.3V |
| Current - Test | 30mA |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | - |
| Wavelength - Peak | - |
| Features | - |
| Package / Case | 4-PLCC |
| Supplier Device Package | 4-PLCC |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Height (Max) | 2.10mm |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | LW ETSG-ABCA-JKPL-46-30-R18 | LW ETSG-AAAB-JKKL-45-30-R18-Z-M | LW ETSG-AABB-JKPL-1-30-R18-Z | LW ETSG-BACA-NOK-1-30-R18-WX-ST1 |
| Manufacturer | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | LED WHITE DIFFUSED 4PLCC SMD | LED POWER TOPLED SURFACE MOUNT | LED WHITE DIFFUSED 4PLCC SMD | OSRAM |
| Series | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Bulk |
