LX2260ILQ-TR
lmages are for reference only.LX2260ILQ-TR
IC LED DRVR CTRL PWM 500MA 38QFN
Datasheet38-VFQFN Exposed Pad
54,260 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
LED Driver IC 4 Output DC DC Controller Step-Down (Buck), Step-Up (Boost) Analog, PWM Dimming 500mA 38-QFN (5x7)
LX2260ILQ-TR
| Category | Integrated Circuits (ICs) - Power Management PMIC - LED Drivers |
| Manufacturer | Microsemi Corporation |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | |
| Type | DC DC Controller |
| Topology | Step-Down (Buck), Step-Up (Boost) |
| Internal Switch(s) | No |
| Number of Outputs | 4 |
| Voltage - Supply (Min) | 6V |
| Voltage - Supply (Max) | 28V |
| Voltage - Output | - |
| Current - Output / Channel | 500mA |
| Frequency | 670kHz |
| Dimming | Analog, PWM |
| Applications | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 38-VFQFN Exposed Pad |
| Supplier Device Package | 38-QFN (5x7) |
| Base Product Number | LX2260 |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Product Attribute |  |
 |
 |
 |

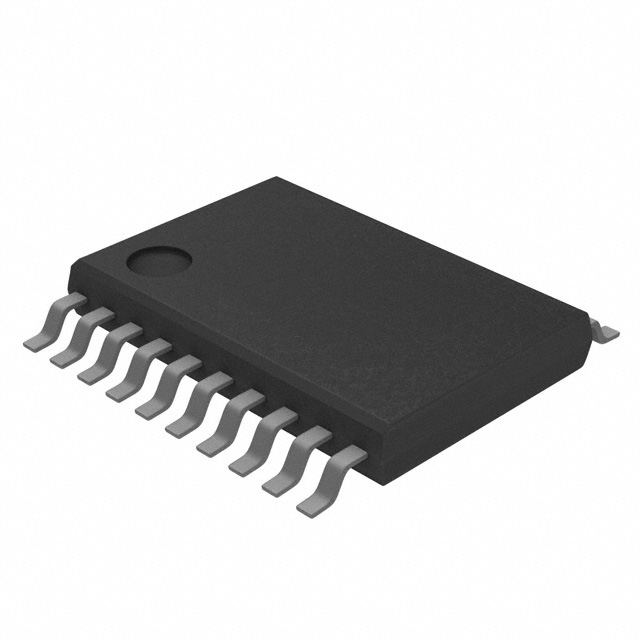

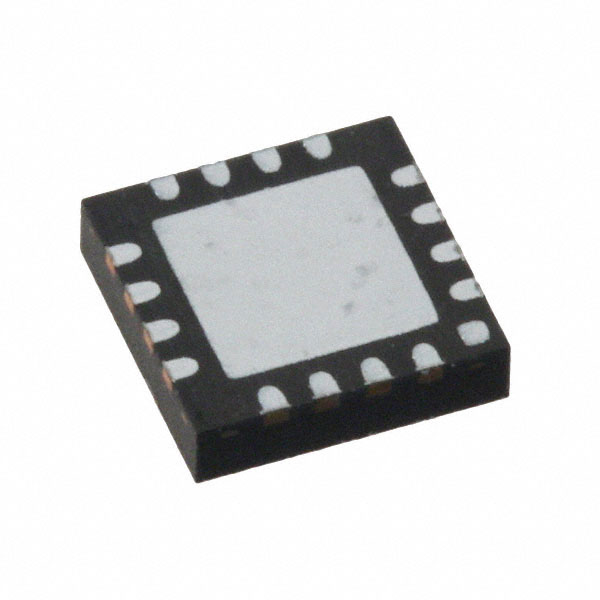

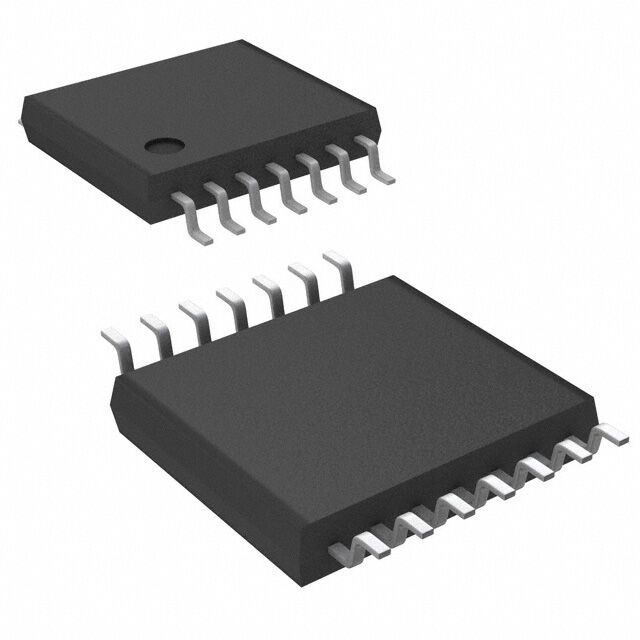

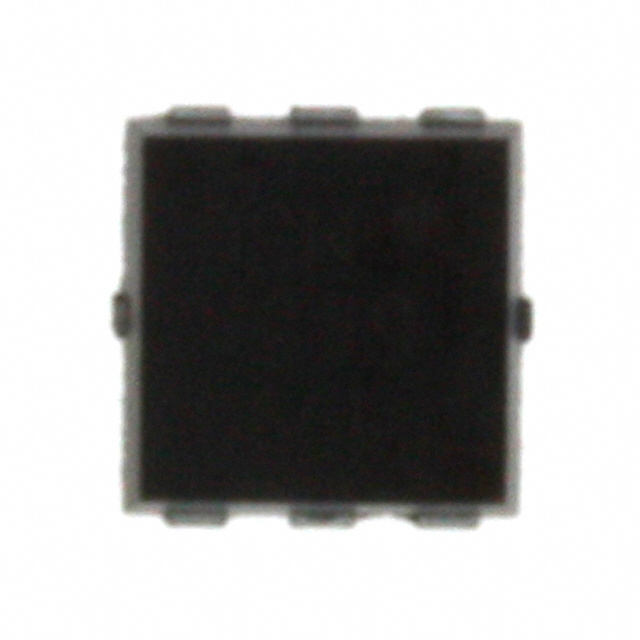

| Part Number | LX1744CLQ | LX1744CPW | LX1745CPW | LX1990ILM |
| Manufacturer | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation |
| RoHS Status | ||||
| Description | IC LED DRIVER CTRLR PWM 16MLPQ | IC LED DRIVER CTRLR PWM 14TSSOP | IC LED DRIVER CTRLR PWM 20TSSOP | IC LED DRVR LINEAR PWM 30MA 6MLP |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Bulk | Bulk |
