LX7165-01CSP
lmages are for reference only.LX7165-01CSP
IC REG BUCK PROG/0.9V 5A 20WLCSP
Datasheet20-UFBGA, WLCSP
43,869 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Buck Switching Regulator IC Positive Programmable (Fixed) 0.6V (0.9V) 1 Output 5A 20-UFBGA, WLCSP
LX7165-01CSP
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators DC DC Switching Regulators |
| Manufacturer | Microsemi Corporation |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Programmable (Fixed) |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 3V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 0.6V (0.9V) |
| Voltage - Output (Max) | 3.3V |
| Current - Output | 5A |
| Frequency - Switching | 1.875MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | 0°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-UFBGA, WLCSP |
| Supplier Device Package | 20-WLCSP |
| Base Product Number | LX7165 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
|

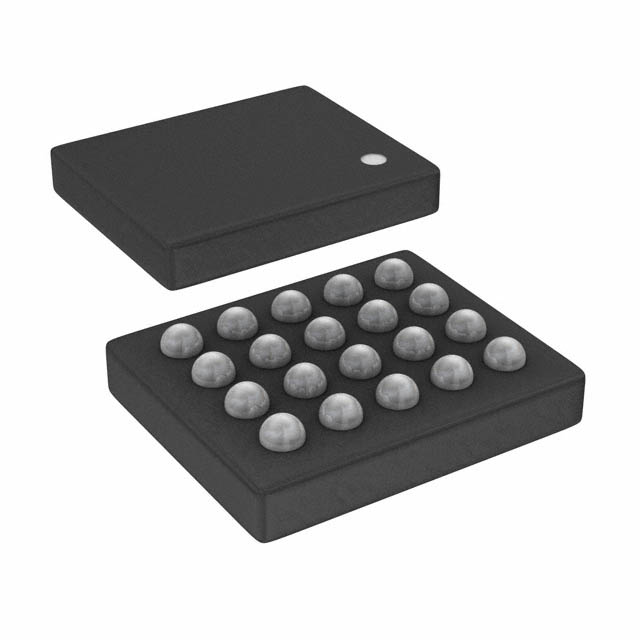

| Part Number | LX7165-01CSP-TR | LX7165-02CSP | LX7165-02CSP-TR | LX7165-03CSP |
| Manufacturer | Microchip Technology | Microsemi Corporation | Microchip Technology | Microsemi Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG BUCK PROG/0.9V 5A 20WLCSP | IC REG BCK PROG/0.95V 5A 20WLCSP | IC REG BCK PROG/0.95V 5A 20WLCSP | IC REG BCK PROG/0.97V 5A 20WLCSP |
| Series | Microchip Technology | Microsemi Corporation | Microchip Technology | Microsemi Corporation |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Bulk |
