LY L296-P1R2-26-Z

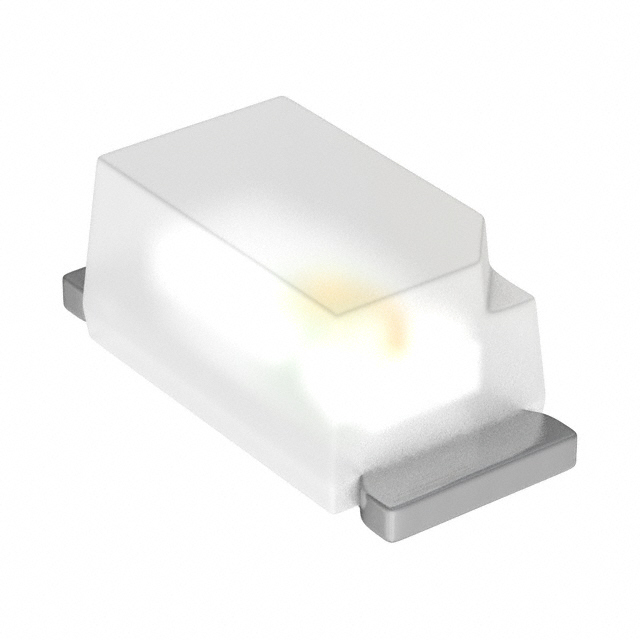

lmages are for reference only.LY L296-P1R2-26-Z
LED YELLOW DIFFUSED 0603 SMD
Datasheet0603 (1608 Metric)
21,753 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Yellow 588nm LED Indication - Discrete 2V 0603 (1608 Metric)
LY L296-P1R2-26-Z
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | ams-OSRAM USA INC. |
| Series | SMARTLED® 0603 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Color | Yellow |
| Configuration | Standard |
| Lens Color | White |
| Lens Transparency | Diffused |
| Millicandela Rating | 112.5mcd |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.30mm x 0.80mm |
| Voltage - Forward (Vf) (Typ) | 2V |
| Current - Test | 20mA |
| Viewing Angle | 160° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 588nm |
| Wavelength - Peak | - |
| Features | - |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 |
| Size / Dimension | 1.70mm L x 0.80mm W |
| Height (Max) | 0.65mm |
| Base Product Number | LYL296 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
|
| Part Number | LY L296-P2R1-26-Z | LY L296-P2R1-45-0-20-R18-Z | LY L296-Q1Q2-4-0-20-R18-Z-XX | LY L296-Q1R1-3-0-20-R18-ZR-MM |
| Manufacturer | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | LED YELLOW DIFFUSED 0603 SMD | LED YELLOW DIFFUSED 0603 SMD | LED YELLOW DIFFUSED 0603 SMD | LED YELLOW DIFFUSED 0603 SMD |
| Series | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
