Product CatalogPart Number
LZSR 200-P/SP1
Manufacturer
LEM USA Inc.Description
CLOSED-LOOP CURRENT SENSOR 200A
Datasheet
DatasheetPackage
Module
In Stock
87,534 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
LZSR 200-P/SP1
LZSR 200-P/SP1

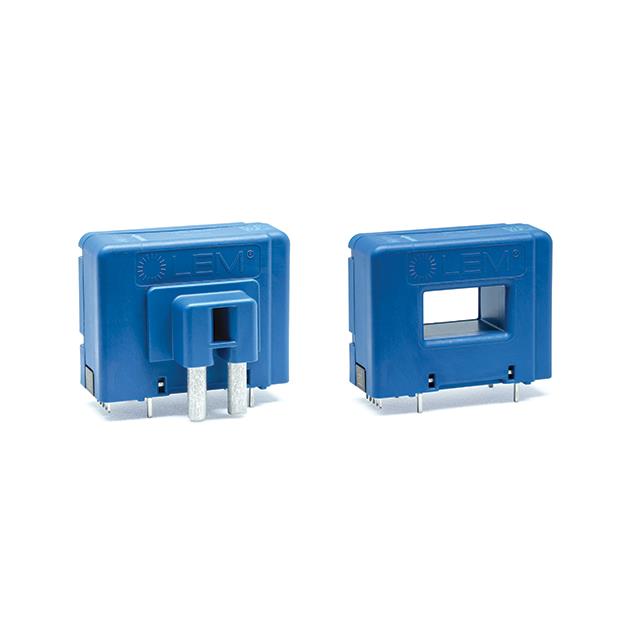

lmages are for reference only.Payment Methods
Delivery Services
Current Sensor 200A 1 Channel Closed Loop Bidirectional Module
Quick Inquiry
LZSR 200-P/SP1
Specifications
| Category | Sensors, Transducers - Current Sensors - |
| Manufacturer | LEM USA Inc. |
| Series | LZSR-P/SP1 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| For Measuring | AC/DC |
| Sensor Type | Closed Loop |
| Current - Sensing | 200A |
| Number of Channels | 1 |
| Output | Voltage |
| Sensitivity | 3.125mV/A |
| Frequency | DC ~ 200kHz |
| Linearity | ±0.15% |
| Accuracy | - |
| Voltage - Supply | 4.75V ~ 5.25V |
| Response Time | - |
| Current - Supply (Max) | - |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Bidirectional |
| Mounting Type | Through Hole |
| Package / Case | Module |
| Supplier Device Package | - |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | LZSR 200-TP/SP1 | LZSR 100-P | LZSR 100-TP | LZSR 150-P |
| Manufacturer | LEM USA Inc. | LEM USA Inc. | LEM USA Inc. | LEM USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CLOSED-LOOP CURRENT SENSOR 200A | CLOSED-LOOP CURRENT SENSOR 100A | CLOSED-LOOP CURRENT SENSOR 100A | CLOSED-LOOP CURRENT SENSOR 150A |
| Series | LEM USA Inc. | LEM USA Inc. | LEM USA Inc. | LEM USA Inc. |
| Packaging | Bulk | Bulk | Bulk | Bulk |
