M15733/38-0004

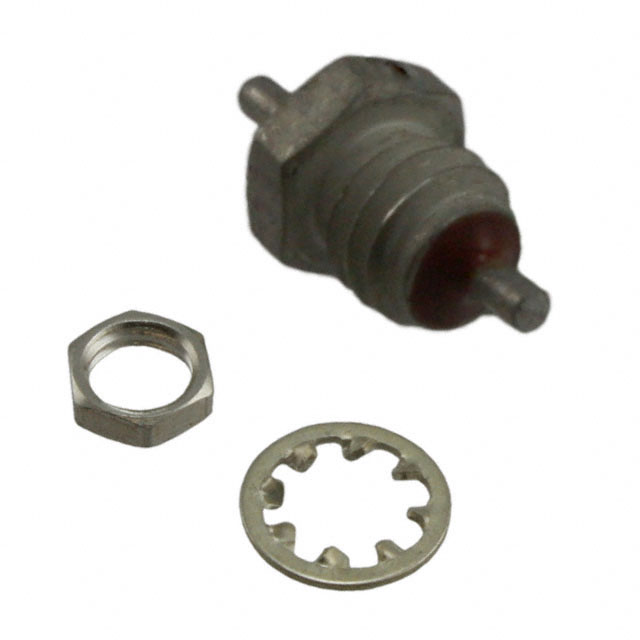

lmages are for reference only.M15733/38-0004
FILTER LC 1.4UF CHASSIS
DatasheetAxial, Bushing - 2 Solder Eyelets
64,575 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
LC EMI Filter 2nd Order Low Pass 1 Channel C = 1.4µF 10 A Axial, Bushing - 2 Solder Eyelets
M15733/38-0004
| Category | Filters - EMI-RFI Filters LC-RC Networks - |
| Manufacturer | Tusonix a Subsidiary of CTS Electronic Components |
| Series | - |
| Packaging | Tray |
| RoHS Status | RoHS non-compliant |
| Type | Low Pass |
| Filter Order | 2nd |
| Technology | LC |
| Center / Cutoff Frequency | - |
| Attenuation Value | 70dB @ 1GHz |
| Resistance - Channel (Ohms) | 0.01 |
| Current | 10 A |
| Values | C = 1.4µF |
| ESD Protection | No |
| Operating Temperature | -55°C ~ 125°C |
| Applications | - |
| Voltage - Rated | 50V |
| Mounting Type | Chassis Mount |
| Package / Case | Axial, Bushing - 2 Solder Eyelets |
| Size / Dimension | 0.385" Dia x 0.357" L (9.78mm x 9.07mm) |
| Height | - |
| Number of Channels | 1 |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
|
 |

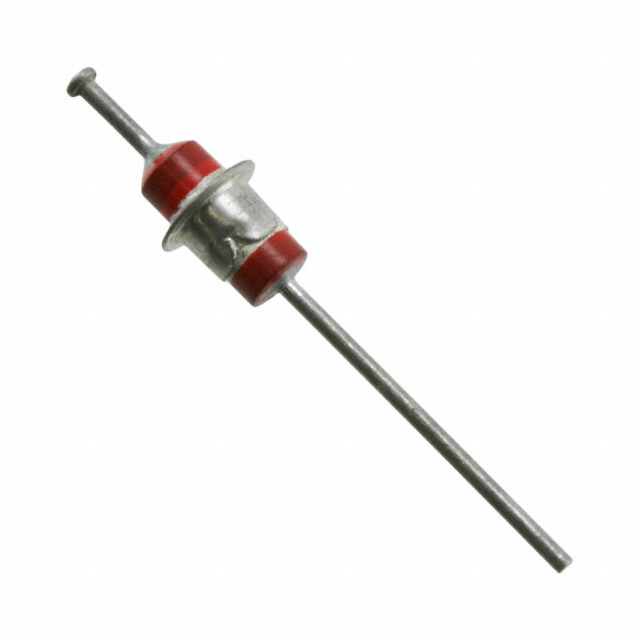

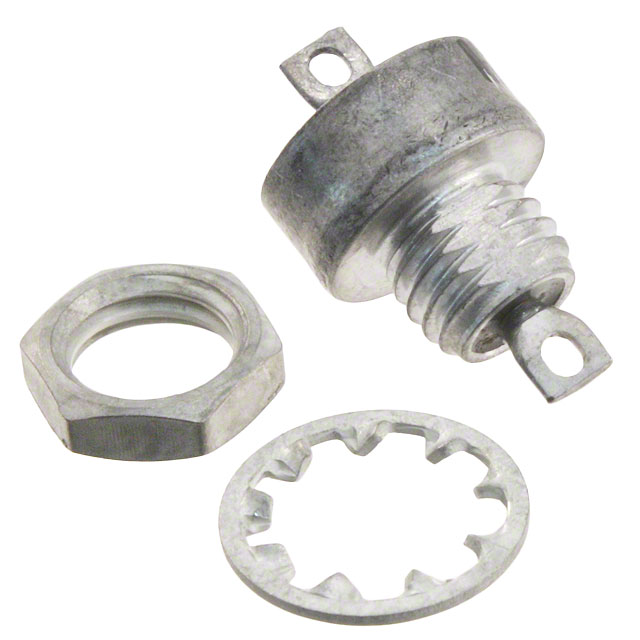

| Part Number | M15733/38-0004 | M15733/38-0005 | M15733/38-0005 | M15733/33-0001 |
| Manufacturer | Tusonix a Subsidiary of CTS Electronic Components | Tusonix a Subsidiary of CTS Electronic Components | Tusonix a Subsidiary of CTS Electronic Components | Tusonix a Subsidiary of CTS Electronic Components |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant |
| Description | FILTER LC 1.4UF CHASSIS | FILTER LC 1.4UF CHASSIS | FILTER LC 1.4UF CHASSIS | FILTER LC(PI) 1750PF CUSTOM |
| Series | - | - | - | - |
| Packaging | Tray | Tray | Tray | Bulk |
