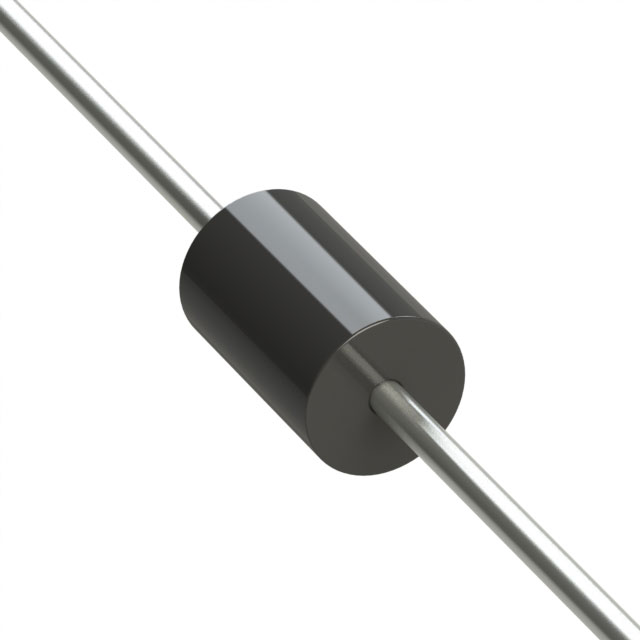

M15KP240AE3
lmages are for reference only.M15KP240AE3
TVS DIODE 240VWM 388VC DO204AR
DatasheetDO-204AR, Axial
96,845 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
388V Clamp 39A Ipp Tvs Diode Through Hole DO-204AR
M15KP240AE3
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Microchip Technology |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 240V |
| Voltage - Breakdown (Min) | 267V |
| Voltage - Clamping (Max) @ Ipp | 388V |
| Current - Peak Pulse (10/1000µs) | 39A |
| Power - Peak Pulse | 15000W (15kW) |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | DO-204AR, Axial |
| Supplier Device Package | DO-204AR |
| Base Product Number | 15KP240 |
| Unidirectional Channels | 1 |
| Grade | Military |
| Qualification | MIL-PRF-19500 |
| Product Attribute |  |
 |
|
 |
| Part Number | M15KP240AE3/TR | M15KP240A | M15KP240A | M15KP240A/TR |
| Manufacturer | Microchip Technology | Microchip Technology | MDE Semiconductor Inc | Microchip Technology |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | ||
| Description | TVS 240V 5% 15000W UNI | TVS DIODE 240VWM 388VC DO204AR | TVS DIODE UP 240VRWM 384.6VC | TVS 240V 5% 15000W UNI |
| Series | Microchip Technology | Microchip Technology | MDE Semiconductor Inc | Microchip Technology |
| Packaging | Tape & Reel (TR) | Bulk | Bulk | Tape & Reel (TR) |
